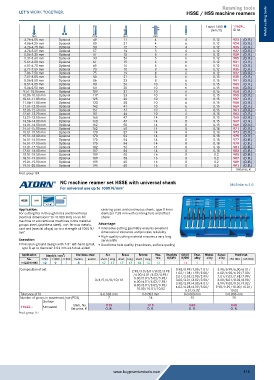

Page 116 - Buy Premium Tools ATORN Catalogue

Reaming tools
HSSE / HSS machine reamers

f steel 1300 ˜ 11624... Metal cutting tools
h6 (mm/U) ID no.
mm mm mm mm
3.76-4.05 mm Optional 49 11 4 4 0.12 923 (O. R.)
4.06-4.25 mm Optional 80 21 4 6 0.12 924 (O. R.)
4.26-4.75 mm Optional 53 12 5 4 0.12 925 (O. R.)
4.76-5.05 mm Optional 57 14 5 4 0.12 927 (O. R.)
5.06-5.30 mm Optional 61 15 5 6 0.12 929 (O. R.)
5.31-5.60 mm Optional 93 26 5 6 0.12 995 (O. R.)
5.61-6.00 mm Optional 61 15 6 6 0.12 931 (O. R.)
6.01-6.70 mm Optional 65 16 6 6 0.12 933 (O. R.)
6.71-7.05 mm Optional 70 18 8 6 0.12 935 (O. R.)
7.06-7.50 mm Optional 75 19 8 6 0.12 937 (O. R.)
7.51-8.05 mm Optional 80 21 8 6 0.15 939 (O. R.)
8.06-8.50 mm Optional 86 23 8 6 0.15 941 (O. R.)
8.51-9.05 mm Optional 93 26 10 6 0.15 943 (O. R.)
9.06-9.50 mm Optional 101 28 10 6 0.15 945 (O. R.)
9.51-10.05 mm Optional 109 31 10 6 0.15 954 (O. R.)
10.06-10.60 mm Optional 117 33 10 6 0.15 955 (O. R.)
10.61-11.05 mm Optional 125 36 10 6 0.15 957 (O. R.)
11.06-11.80 mm Optional 133 38 10 6 0.15 958 (O. R.)
11.81-12.05 mm Optional 142 41 10 6 0.15 959 (O. R.)
12.06-12.60 mm Optional 151 44 10 6 0.15 961 (O. R.)
12.61-13.20 mm Optional 151 44 10 6 0.15 963 (O. R.)
13.21-13.55 mm Optional 160 47 14 8 0.15 965 (O. R.)
13.56-14.00 mm Optional 160 47 14 8 0.15 967 (O. R.)
14.01-14.50 mm Optional 162 50 14 8 0.15 969 (O. R.)
14.51-15.00 mm Optional 162 50 14 8 0.18 971 (O. R.)
15.01-15.50 mm Optional 170 52 14 8 0.18 973 (O. R.)
15.51-16.00 mm Optional 170 52 14 8 0.18 975 (O. R.)
16.01-16.50 mm Optional 175 54 14 8 0.18 977 (O. R.)
16.51-17.00 mm Optional 175 54 14 8 0.18 979 (O. R.)
17.01-17.50 mm Optional 182 56 14 8 0.18 981 (O. R.)
17.51-18.00 mm Optional 182 56 14 8 0.18 983 (O. R.)
18.01-18.50 mm Optional 189 58 16 8 0.2 985 (O. R.)
18.51-19.00 mm Optional 189 58 16 8 0.2 987 (O. R.)
19.01-19.50 mm Optional 195 60 16 8 0.2 989 (O. R.)
19.51-20.00 mm Optional 195 60 16 8 0.2 991 (O. R.)
Unit price, €
Prod. group 1BK
NC machine reamer set HSSE with universal shank
For universal use up to 1000 N/mm 2 DIN Similar to 212

HA
HSSE 0,001
7–8°
Application: centring point and continuous shank, type D from
For cutting fits in through holes and blind holes diameter 2.98 mm with centring hole and offset
(nominal dimensions=0/+0.003 mm) on an NC shank
machine or conventional machines in the material
groups steel, (stainless steel), non-ferrous metals, Advantage:
cast and (special alloys) up to a strength of 1000 N/ ƒ Innovative cutting geometry ensures excellent
mm . 2 dimensional tolerance and process reliability
ƒ High-quality cutting material ensures a very long
Execution: service life
ƒ Precision-ground design with 7-8° left-hand spiral, ƒ Good bore hole quality (roundness, surface quality)
type B up to diameter 2.03 mm with dual-sided
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11622010-040 12 9 7 8 7 17 17 17 17 13 13 13 11 5 5 5
Composition of set 2.98/3.0/3,01/3.02/3.98 0.98/0.99/1,00/1.01/ 5.98/5.99/6,00/6.01/
/4.00/4.01/4.02/4.98/ 1.02/1.98/1.99/2.00/ 6.02/6.98/6.99/7.00/
7.01/7.02/7.98/7.99/
2.01/2.02/2.98/2.99/
3/4/5/6/8/10/12 5.00/5.01/5.02/5.98/ 3.00/3.01/3.02/3.98/ 8.00/8.01/8.02/8.98/
6.00/6.01/6.02/7.98/
8.00/8.01/8.02/9.98/ 3.98/3.99/4.00/4.01/ 8.99/9.00/9.01/9.02/
10.00/10.01/10.02 4.02/4.98/4.99/5.00/ 9.98/9.99/10.00/10.01/
5.01/5.02
10.02
Tolerance of fit 0-0.003 mm 0-0.003 mm 0-0.003 mm 0-0.003 mm
Number of pieces in assortment/set (PCS) 7 24 25 25
Surface
040
030
010
Ident. No.
015
11622... Uncoated Set price, € O. R. O. R. O. R. O. R.
Prod. group 117
