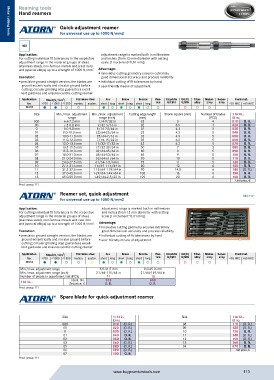

P. 113
Reaming tools
Hand reamers
Quick-adjustment reamer
for universal use up to 1000 N/mm2
Metal cutting tools
Metal cutting tools
HSS
Application: adjustment range is marked both in millimetres
For cutting individual fit tolerances in the respective and inches (from 12-mm diameter with setting
adjustment range in the material groups of steel, scale [1 increment=0.01 mm])
(stainless steel), non-ferrous metals and (cast iron)
and (special alloys) up to a strength of 1000 N/mm . 2 Advantage:
innovative cutting geometry ensures extremely
Execution: good dimensional accuracy and process reliability
precision-ground straight version, the blades are individual cutting of fit tolerances by hand
ground eccentrically and circular ground before user-friendly means of adjustment
cutting; circular grinding step guarantees excel-
lent guidance and ensures centric cutting reamer
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11610
Size Min./max. adjustment Min./max. adjustment Cutting edge length Shank square (mm) Number of blades 11610...
range range (inch) (mm) (PCS) ID no.
000 6.4-7.2 mm 1/4-9/32 in 32 3 4 010 O. R.
00 7.2-8.0 mm 9/32-5/16 in 32 3.5 4 020 O. R.
0 8.0-9.0 mm 5/16-23/64 in 32 4.3 5 030 O. R.
01 9.0-10.0 mm 23/64-25/64 in 32 4.3 5 040 O. R.
02 10.0-11.0 mm 25/64-7/16 in 32 4.9 5 050 O. R.
03 11.0-12.0 mm 7/16-15/32 in 35 6.2 5 060 O. R.
04 12.0-13.5 mm 15/32-17/32 in 42 6.2 5 070 O. R.
05 13.5-15.5 mm 17/32-39/64 in 50 7 5 080 O. R.
06 15.5-18.0 mm 39/64-45/64 in 60 8 5 090 O. R.
07 18.0-21.0 mm 45/64-53/64 in 65 9 5 100 O. R.
08 21.0-24.0 mm 53/64-61/64 in 70 10 5 110 O. R.
09 24.0-27.5 mm 61/64-1-5/64 in 75 11 5 120 O. R.
10 27.5-31.5 mm 1-5/64-1-15/64 in 80 12 6 130 O. R.
11 31.5-37.5 mm 1-15/64-1-29/64 in 90 14.5 6 140 (O. R.)
12 37.0-45.0 mm 1-29/64-1-49/64 in 100 16 6 150 O. R.
13 45.0-55.0 mm 1-49/64-2-5/32 in 109 20 6 160 O. R.
Unit price, €
Prod. group 111
Reamer set, quick-adjustment DIN 212
for universal use up to 1000 N/mm2
Application: adjustment range is marked both in millimetres
For cutting individual fit tolerances in the respective and inches (from 12-mm diameter with setting
adjustment range in the material groups of steel, scale [1 increment=0.01 mm])
(stainless steel), non-ferrous metals and cast iron
and (special alloys) up to a strength of 1000 N/mm . 2 Advantage:
innovative cutting geometry ensures extremely
Execution: good dimensional accuracy and process reliability
precision-ground straight version, the blades are individual cutting of fit tolerances by hand
ground eccentrically and circular ground before user-friendly means of adjustment
cutting; circular grinding step guarantees excel-
lent guidance and ensures centric cutting reamer
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11616
Min./max. adjustment range 8.0-31.5 mm 8.0-45.0 mm
Min./max. adjustment range (inch) 21/64-115/64 in 21/64-149/64 in
Number of pieces in assortment/set (PCS) 11 13
315
450
Ident. No.
11616... Set price, € O. R. O. R.
Prod. group 111
Spare blade for quick-adjustment reamer
Size 11612... Size 11612...
ID no. ID no.
000 010 (O. R.) 08 110 (O. R.)
00 020 (O. R.) 09 120 (O. R.)
0 030 (O. R.) 10 130 O. R.
01 040 O. R. 11 140 (O. R.)
02 050 O. R. 12 150 (O. R.)
03 060 (O. R.) 13 160 O. R.
05 080 (O. R.) 04 070 O. R.
06 090 (O. R.) Set price, €
07 100 O. R.
Prod. group 111
