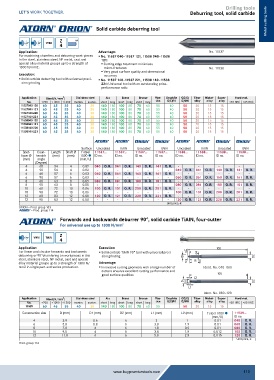

Page 110 - Buy Premium Tools ATORN Catalogue

Drilling tools
Deburring tool, solid carbide

Solid carbide deburring tool Metal cutting tools

Z HA
VHM
4
Application: Advantage: No. 11537
For machining chamfers and deburring work pieces ƒ No. 11537 040–11537 121, 11538 040–11538
in the steel, stainless steel, NF metal, cast and 121:
special alloy material groups up to a strength of ƒ Cutting edge treatment minimises
1300 N/mm2. micro-fractures No. 11538
ƒ Very good surface quality and dimensional
Execution: accuracy
ƒ Solid carbide deburring tool with universal preci- ƒ No. 11537 140–11537 221, 11538 140–11538
sion grinding 221: Universal tool with an outstanding price-
performance ratio

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11537040-120 60 45 35 40 30 140 180 100 80 70 60 55 40 50 20 15 15
11537041-121 60 45 35 40 30 140 180 100 80 70 60 55 40 50 20 15 15
11537140-220 60 45 35 40 30 140 180 100 80 70 60 55 40 50 20 15 15
11537141-221 60 45 35 40 30 140 180 100 80 70 60 55 40 50 20 15 15
11538040-120 60 45 35 40 30 140 180 100 80 70 60 55 40 50 20 15 15
11538041-121 60 45 35 40 30 140 180 100 80 70 60 55 40 50 20 15 15
11538140-220 60 45 35 40 30 140 180 100 80 70 60 55 40 50 20 15 15
11538141-221 60 45 35 40 30 140 180 100 80 70 60 55 40 50 20 15 15

Surface Uncoated TiAlN Uncoated TiAlN Uncoated TiAlN Uncoated TiAlN
Spot- Coun- Length Shaft Ø f steel 11537... 11537... 11537... 11537... 11538... 11538... 11538... 11538...
facer Ø tersink (mm) (mm) 1000 ˜ ID no. ID no. ID no. ID no. ID no. ID no. ID no. ID no.
(mm) angle (mm/U)
(Degree)
4 60 54 4 0.02 040 O. R. 041 O. R. 140 O. R. 141 O. R. - - - - - - - -
4 90 54 4 0.02 - - - - - - - - 040 O. R. 041 O. R. 140 O. R. 141 O. R.
6 60 57 6 0.03 060 O. R. 061 O. R. 160 O. R. 161 O. R. - - - - - - - -
6 90 57 6 0.03 - - - - - - - - 060 O. R. 061 O. R. 160 O. R. 161 O. R.
8 60 63 8 0.05 080 O. R. 081 O. R. 180 O. R. 181 O. R. - - - - - - - -
8 90 63 8 0.05 - - - - - - - - 080 O. R. 081 O. R. 180 O. R. 181 O. R.
10 60 72 10 0.06 100 O. R. 101 O. R. 200 O. R. 201 O. R. - - - - - - - -
10 90 72 10 0.06 - - - - - - - - 100 O. R. 101 O. R. 200 O. R. 201 O. R.
12 60 83 12 0.08 120 O. R. 121 O. R. 220 O. R. 221 O. R. - - - - - - - -
12 90 83 12 0.08 - - - - - - - - 120 O. R. 121 O. R. 220 O. R. 221 O. R.
Unit price, €
ORION = Prod. group 103
a = Prod. group 114
Forwards and backwards deburrer 90°, solid carbide TiAlN, four-cutter
For universal use up to 1300 N/mm 2

Z
VHM TiAlN
4
Application: Execution: 100
For linear and circular forwards and backwards ƒ Solid carbide TiAlN 90° tool with universal preci- L2 4
deburring or 90°chamfering on workpieces in the sion grinding D D2
steel, stainless steel, NF metal, cast and special 15
alloy material groups up to a strength of 1300 N/ Advantage: L1
mm2 in single part and series production. ƒ Innovative cutting geometry with a large number of Ident. No. 040–060
cutters ensures excellent cutting performance and
good surface qualities 100
L2
D D1 D2
L1
Ident. No. 080–120
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11539 60 45 35 40 30 140 180 100 80 70 60 55 50 20 15 15
Construction size D (mm) D1 (mm) D2 (mm) L1 (mm) L2 (mm) f steel 1000 ˜ 11539...
(mm/U) ID no.
4 3.9 0.6 6 2 1 0.01 040 O. R.
6 5.8 0.8 6 3.8 1.9 0.01 060 O. R.
8 7.8 6 6 1.8 0.9 0.01 080 O. R.
10 9.8 6 6 3.8 1.9 0.012 100 O. R.
12 11.8 6 6 5.8 2.9 0.015 120 O. R.
Unit price, €
Prod. group 114
