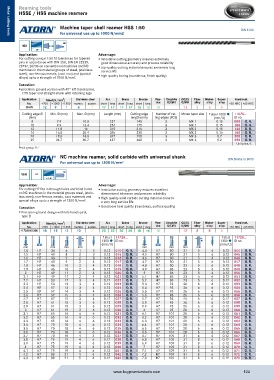

P. 124
Reaming tools
HSSE / HSS machine reamers
Machine taper shell reamer HSS 1:50 DIN 2180
for universal use up to 1000 N/mm2
Metal cutting tools
Metal cutting tools
MK
HSS
45°
Application: Advantage:
For cutting conical 1:50 fit tolerances for tapered innovative cutting geometry ensures extremely
pins in accordance with DIN 258, DIN EN 22339, good dimensional accuracy and process reliability
28737, 28736 on conventional machines and NC top-quality cutting material ensures extremely long
machines in the material groups of steel, (stainless service life
steel), non-ferrous metals, (cast iron) and (special high-quality boring (roundness, finish quality)
alloys) up to a strength of 1000 N/mm . 2
Execution:
precision-ground version with 45° left-hand spiral,
1:50 taper and straight shank with retaining lugs
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11675 12 9 7 8 7 17 17 17 17 13 13 13 11 5 5 5
Cutting edge Ø Min. Ø (mm) Max. Ø (mm) Length (mm) Cutting edge Number of cut- Morse taper size f steel 1000 11675...
(mm) length (mm) ting edges (PCS) (mm/U) ID no.
8 7.9 10.8 227 145 3 MK 1 0.15 080 O. R.
10 9.9 13.4 257 175 3 MK 1 0.15 100 O. R.
12 11.8 16 315 210 3 MK 2 0.15 120 O. R.
16 15.8 20.4 335 230 3 MK 2 0.15 160 O. R.
20 19.8 24.8 377 250 3 MK 3 0.2 200 O. R.
25 24.7 30.7 427 300 3 MK 3 0.2 250 O. R.
Unit price, €
Prod. group 117
NC machine reamer, solid carbide with universal shank DIN Similar to 8093
For universal use up to 1300 N/mm 2
HA
VHM
7–8°
Application: Advantage:
For cutting H7 fits in through holes and blind holes Innovative cutting geometry ensures excellent
on NC machines in the material groups steel, (stain- dimensional tolerance and process reliability
less steel), non-ferrous metals, cast materials and High-quality solid carbide cutting material ensures
special alloys up to a strength of 1300 N/mm . 2 a very long service life
Execution: Good bore hole quality (roundness, surface quality)
Precision-ground design with left-hand spiral,
type B
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11726010-200 18 15 12 10 8 20 20 20 20 18 16 18 12 8 8 6
f steel 11726... f steel 11726...
h6 1300 ID no. h6 1300 ID no.
(mm/U) (mm/U)
mm mm mm mm mm mm mm mm
1.0 H7 34 6 1 3 0.12 010 O. R. 4.4 H7 80 21 5 6 0.12 044 O. R.
1.5 H7 40 8 2 3 0.12 015 O. R. 4.5 H7 80 21 5 6 0.12 045 O. R.
1.6 H7 43 9 2 3 0.12 016 O. R. 4.6 H7 80 21 5 6 0.12 046 O. R.
1.7 H7 43 9 2 4 0.12 017 O. R. 4.7 H7 80 21 5 6 0.12 047 O. R.
1.8 H7 46 10 2 4 0.12 018 O. R. 4.8 H7 80 23 5 6 0.12 048 O. R.
1.9 H7 46 10 2 4 0.12 019 O. R. 4.9 H7 86 23 5 6 0.12 049 O. R.
2 H7 49 11 2 4 0.12 020 O. R. 5 H7 86 23 5 6 0.12 050 O. R.
2.1 H7 49 11 2 4 0.12 021 O. R. 5.1 H7 86 23 5 6 0.12 051 O. R.
2.2 H7 53 12 3 4 0.12 022 O. R. 5.2 H7 86 23 5 6 0.12 052 O. R.
2.3 H7 53 12 3 4 0.12 023 O. R. 5.3 H7 93 26 6 6 0.12 053 O. R.
2.4 H7 57 14 3 4 0.12 024 O. R. 5.4 H7 93 26 6 6 0.12 054 O. R.
2.5 H7 57 14 3 4 0.12 025 O. R. 5.5 H7 93 26 6 6 0.12 055 O. R.
2.6 H7 57 15 3 4 0.12 026 O. R. 5.6 H7 93 26 6 6 0.12 056 O. R.
2.7 H7 57 15 3 4 0.12 027 O. R. 5.7 H7 93 26 6 6 0.12 057 O. R.
2.8 H7 61 15 3 6 0.12 028 O. R. 5.8 H7 93 26 6 6 0.12 058 O. R.
2.9 H7 61 15 3 6 0.12 029 O. R. 5.9 H7 93 26 6 6 0.12 059 O. R.
3 H7 61 15 3 6 0.12 030 O. R. 6 H7 93 26 6 6 0.12 060 O. R.
3.1 H7 65 16 4 6 0.12 031 O. R. 6.1 H7 101 28 6 6 0.12 061 O. R.
3.2 H7 65 16 4 6 0.12 032 O. R. 6.2 H7 101 28 6 6 0.12 062 O. R.
3.3 H7 65 16 4 6 0.12 033 O. R. 6.3 H7 101 28 6 6 0.12 063 O. R.
3.4 H7 70 18 4 6 0.12 034 O. R. 6.4 H7 101 28 6 6 0.12 064 O. R.
3.5 H7 70 18 4 6 0.12 035 O. R. 6.5 H7 101 28 6 6 0.12 065 O. R.
3.6 H7 70 18 4 6 0.12 036 O. R. 6.6 H7 101 28 6 6 0.12 066 O. R.
3.7 H7 70 18 4 6 0.12 037 O. R. 6.7 H7 109 31 6 6 0.12 067 O. R.
3.8 H7 75 19 4 6 0.12 038 O. R. 6.8 H7 109 31 8 6 0.12 068 O. R.
3.9 H7 75 19 4 6 0.12 039 O. R. 6.9 H7 109 31 8 6 0.12 069 O. R.
4 H7 75 19 4 6 0.12 040 O. R. 7 H7 109 31 8 6 0.12 070 O. R.
4.1 H7 75 19 4 6 0.12 041 O. R. 7.1 H7 109 31 8 6 0.12 071 O. R.
4.2 H7 80 21 4 6 0.12 042 O. R. 7.2 H7 109 31 8 6 0.12 072 O. R.
4.3 H7 80 21 5 6 0.12 043 O. R. 7.3 H7 109 31 8 6 0.12 073 O. R.
