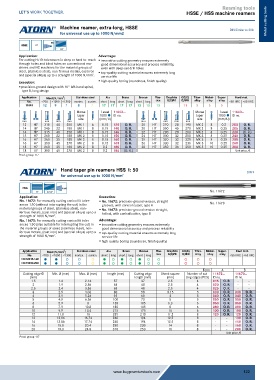

P. 122
Reaming tools
HSSE / HSS machine reamers
Machine reamer, extra-long, HSSE DIN Similar to 208 Metal cutting tools
for universal use up to 1000 N/mm2
MK
HSSE
10°
Application: Advantage:
For cutting H7 fit tolerances in deep or hard-to-reach innovative cutting geometry ensures extremely
through holes and blind holes on conventional ma- good dimensional accuracy and process reliability,
chines and NC machines for the material groups of even with deep-set drill holes
steel, (stainless steel), non-ferrous metals, cast iron top-quality cutting material ensures extremely long
and (special alloys) up to a strength of 1000 N/mm . 2 service life
Execution: high-quality boring (roundness, finish quality)
precision-ground design with 10° left-hand spiral,
type B, long design
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11643 12 9 7 8 7 17 17 17 17 13 13 13 11 5 5 5
Morse f steel 11643... Morse f steel 11643...
taper 1000 ID no. taper 1000 ID no.
size (mm/U) size (mm/U)
mm mm mm mm mm mm mm mm
12 H7 315 40 250 MK 1 6 0.15 125 O. R. 20 H7 270 28 190 MK 2 8 0.2 200 O. R.
14 H7 245 22 180 MK 1 8 0.15 140 O. R. 20 H7 350 45 270 MK 2 8 0.25 205 O. R.
14 H7 315 40 250 MK 1 8 0.15 145 O. R. 22 H7 280 28 200 MK 2 8 0.25 220 (O. R.)
15 H7 260 22 180 MK 2 8 0.15 150 O. R. 24 H7 300 32 200 MK 3 8 0.25 240 O. R.
16 H7 260 25 180 MK 2 8 0.15 160 O. R. 25 H7 320 32 220 MK 3 8 0.25 250 O. R.
16 H7 350 45 270 MK 2 8 0.15 165 O. R. 26 H7 330 32 236 MK 3 10 0.25 260 O. R.
18 H7 260 25 180 MK 2 8 0.2 180 O. R. 30 H7 350 36 250 MK 3 10 0.25 300 O. R.
18 H7 350 45 270 MK 2 8 0.2 185 (O. R.) Unit price, €
Prod. group 117
Hand taper pin reamers HSS 1: 50
for universal use up to 1000 N/mm 2 DIN 9
HSS
0° 7–8° No. 11672
Application: Execution:
No. 11672: For manually cutting conical fit toler- No. 11672: precision-ground version, straight
ances 1:50 (without interrupting the cut) in the grooves, with conical cutter, type A No. 11673
material groups of steel, (stainless steel), non- No. 11673: precision-ground version straight,
ferrous metals, (cast iron) and (special alloys) up to a helical, with conical cutter, type B
strength of 1000 N/mm . 2
No. 11673: For manually cutting conical fit toler- Advantage:
ances 1:50 (also suitable for interrupting the cut) in innovative cutting geometry ensures extremely
the material groups of steel, (stainless steel), non- good dimensional accuracy and process reliability
ferrous metals, (cast iron) and (special alloys) up to a top-quality cutting material ensures extremely long
strength of 1000 N/mm . 2 service life
high-quality boring (roundness, finish quality)
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11672015-120
11673030-200
Form A B
Cutting edge Ø Min. Ø (mm) Max. Ø (mm) Length (mm) Cutting edge Shank square Number of cut- 11672... 11673...
(mm) length (mm) (mm) ting edges (PCS) ID no. ID no.
1.5 1.4 2.14 57 37 2.5 4 015 O. R. - -
2 1.9 2.86 68 48 2.5 4 020 O. R. - -
2.5 2.4 3.36 68 48 2.5 4 025 O. R. - -
3 2.9 4.06 80 58 3.15 5 030 O. R. 030 O. R.
4 3.9 5.26 93 68 4 5 040 O. R. 040 O. R.
5 4.9 6.36 100 73 5 5 050 O. R. 050 O. R.
6 5.9 8 135 105 6.3 6 060 O. R. 060 O. R.
8 7.9 10.8 180 145 8 6 080 O. R. 080 O. R.
10 9.9 13.4 215 175 10 6 100 O. R. 100 O. R.
12 11.8 16 255 210 11.2 8 120 O. R. 120 O. R.
13 12.86 16.74 240 194 12.5 8 - - 130 O. R.
14 13.86 17.74 240 194 12.5 8 - - 140 O. R.
16 15.8 20.4 280 230 14 8 - - 160 O. R.
20 19.8 24.8 310 250 18 8 - - 200 O. R.
Unit price, €
Prod. group 117
