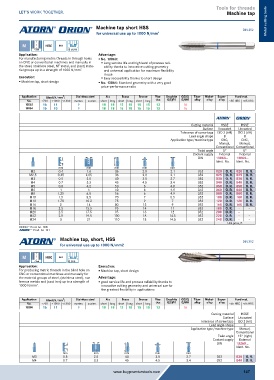

Page 147 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Machine tap short HSS DIN 352 Metal cutting tools
for universal use up to 1000 N/mm 2

M HSSE
3xd B (3,5-5)
Application: Advantage:
For manufacturing metric threads in through holes ƒ No. 13063:
on CNC or conventional machines and manually in ƒ Long service life and high level of process reli-
the steel, stainless steel, NF metal, and (cast) mate- ability thanks to innovative cutting geometry
rial groups up to a strength of 1000 N/mm . 2 and universal application for maximum flexibility
in use
Execution: ƒ Easy accessibility thanks to short design
ƒ Machine tap, short design ƒ No. 13064: Standard geometry with a very good
price-performance ratio

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13063 16 11 9 18 18 15 18 15 15 13 16
13064 15 10 9 18 18 15 18 15 15 13 16

Cutting material HSSE HSSE
Surface Uncoated Uncoated
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H)
Lead angle shape B B
Application type/machine type CNC, CNC,
Manual, Manual,
Conventional Conventional
Twist angle 0° 0°
Coolant supply External External
DIN 13063... 13064...
Ident. No. Ident. No.
mm mm mm mm mm
M2 0.4 1.6 36 2.8 2.1 352 020 O. R. 020 O. R.
M2.5 0.45 2.05 36 2.8 2.1 352 025 O. R. 025 O. R.
M3 0.5 2.5 40 3.5 2.7 352 030 O. R. 030 O. R.
M4 0.7 3.3 45 4.5 3.4 352 040 O. R. 040 O. R.
M5 0.8 4.2 50 6 4.9 352 050 O. R. 050 O. R.
M6 1 5 50 6 4.9 352 060 O. R. 060 O. R.
M8 1.25 6.8 56 6 4.9 352 080 O. R. 080 O. R.
M10 1.5 8.5 70 7 5.5 352 100 O. R. 100 O. R.
M12 1.75 10.2 75 9 7 352 120 O. R. 120 O. R.
M16 2 14 80 12 9 352 160 O. R. 160 O. R.
M18 2.5 15.5 95 14 11 352 180 O. R. - -
M20 2.5 17.5 95 16 12 352 200 O. R. - -
M22 2.5 19.5 100 18 14.5 352 220 O. R. - -
M24 3 21 110 18 14.5 352 240 O. R. - -
Unit price, €
ORION = Prod. Gr. 1DB
a = Prod. Gr. 131
Machine tap, short, HSS DIN 352
for universal use up to 1000 N/mm2

M HSSE
3xd C (2-3)
Application: Execution:
For producing metric threads in the blind hole on ƒ Machine tap, short design
CNC or conventional machines and manually for
the material groups of steel, (stainless steel), non- Advantage:
ferrous metals and (cast iron) up to a strength of ƒ good service life and process reliability thanks to
1000 N/mm . 2 innovative cutting geometry and universal use for
the greatest flexibility in applications

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13260 16 11 9 18 18 15 18 15 15 13 16
Cutting material HSSE
Surface Uncoated
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type Manual,
Conventional
Twist angle 15° (right)
Coolant supply External
DIN 13260...
Ident. No.
mm mm mm mm mm
M3 0.5 2.5 40 3.5 2.7 352 030 O. R.
M4 0.7 3.3 45 4.5 3.4 352 040 O. R.
