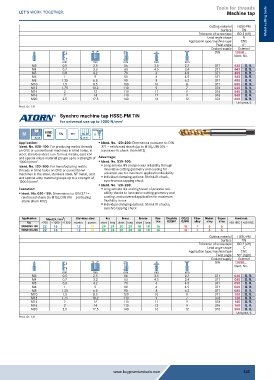

Page 145 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Cutting material HSSE-PM Metal cutting tools
Surface TiN
Tolerance of screw taps ISO 2 (6H)
Lead angle shape B
Application type/machine type CNC
Twist angle 0°
Coolant supply External
DIN 13058...
Ident. No.
mm mm mm mm mm
M3 0.5 2.5 56 3.5 2.7 371 430 O. R.
M4 0.7 3.3 63 4.5 3.4 371 440 O. R.
M5 0.8 4.2 70 6 4.9 371 450 O. R.
M6 1 5 80 6 4.9 371 460 O. R.
M8 1.25 6.8 90 8 6.2 371 480 O. R.
M10 1.5 8.5 100 10 8 371 500 O. R.
M12 1.75 10.2 110 9 7 376 520 O. R.
M14 2 12 110 11 9 376 540 O. R.
M16 2 14 110 12 9 376 560 O. R.
M20 2.5 17.5 140 16 12 376 600 O. R.
Unit price, €
Prod. Gr. 131
Synchro machine tap HSSE-PM TiN
for universal use up to 1000 N/mm 2

CNC/Synchro
M HSSE- TiN
2,5xd PM C (2-3)
Application: ƒ Ident. No. 120–200: Dimensions pursuant to: DIN
Ident. No. 030–100: For producing metric threads 371 = reinforced shank (up to M10), DIN 376 =
on CNC or conventional machines in blind holes, in transition-fit shank (from M12)
steel, stainless steel, non-ferrous metals, cast iron
and special alloys material groups up to a strength of Advantage:
1000 N/mm . 2 ƒ Ident. No. 030–100:
Ident. No. 120–200: For manufacturing metric ƒ Long service life and process reliability through
threads in blind holes on CNC or conventional innovative cutting geometry and coating for
machines in the steel, stainless steel, NF metal, cast universal use for maximum application flexibility
and special alloy material groups up to a strength of ƒ Individual clamping options: Shrink-fit chuck,
1000 N/mm . 2 synchronous tapping chuck
ƒ Ident. No. 120–200:
Execution: ƒ Long service life and high level of process reli-
ƒ Ident. No. 030–100: Dimensions to: DIN 371 = ability thanks to innovative cutting geometry and
reinforced shank (to M10), DIN 376 = protruding coating, and universal application for maximum
shank (from M12) flexibility in use
ƒ Individual clamping options: Shrink-fit chucks,
synchro tapping chuck
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13058030-100 22 15 12 10 24 24 20 20 18 18 16 18 7 6 6
13058120-200 22 15 12 10 24 24 20 20 18 18 16 18 7 6 6
Cutting material HSSE-PM
Surface TiN
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC
Twist angle 50° (right)
Coolant supply External
DIN 13058...
Ident. No.
mm mm mm mm mm
M3 0.5 2.5 56 3.5 2.7 371 030 O. R.
M4 0.7 3.3 63 4.5 3.4 371 040 O. R.
M5 0.8 4.2 70 6 4.9 371 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R.
M14 2 12 110 11 9 376 140 O. R.
M16 2 14 110 12 9 376 160 O. R.
M20 2.5 17.5 140 16 12 376 200 O. R.
Unit price, €
Prod. Gr. 131
