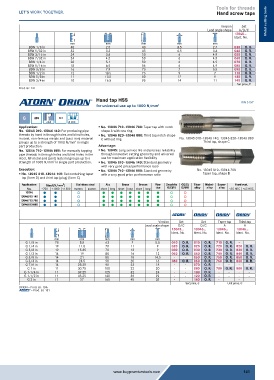

Page 141 - Buy Premium Tools ATORN Catalogue

Tools for threads
Hand screw taps

Version Set Metal cutting tools
Lead angle shape A/D/C
13040...
Ident. No.
mm mm mm mm mm
BSW 1/8 in 40 2.5 40 3.5 2.7 030 O. R.
BSW 5/32 in 32 3.2 45 4.5 3.4 040 O. R.
BSW 3/16 in 24 3.6 50 6 4.9 050 O. R.
BSW 7/32 in 24 4.5 50 6 4.9 060 O. R.
BSW 1/4 in 20 5.1 50 6 4.9 070 O. R.
BSW 5/16 in 18 6.5 56 6 4.9 080 O. R.
BSW 3/8 in 16 7.9 70 7 5.5 090 O. R.
BSW 1/2 in 12 10.5 75 9 7 110 O. R.
BSW 5/8 in 11 13.5 80 12 9 130 O. R.
BSW 3/4 in 10 16.5 95 14 11 140 O. R.
Set price, €
Prod. Gr. 131
Hand tap HSS
for universal use up to 1000 N/mm 2 DIN 5157

G HSS
3xd A (6-8)
Application: ƒ No. 13046 710–13046 780: Taper tap with notch
No. 13045 010–13046 140: For producing pipe shape A with one ring
threads by hand in through holes and blind holes, ƒ No. 13046 820–13046 880: Third tap notch shape
in steel, non-ferrous metals and (cast iron) material C without ring No. 13045 010–13046 140, 13046 820–13046 880
groups up to a strength of 1000 N/mm in single- Third tap, shape C
2
part production. Advantage:
No. 13046 710–13046 880: For manually tapping ƒ No. 13045: Long service life and process reliability
pipe threads in through holes and blind holes in the through innovative cutting geometry and universal
steel, NF metal and (cast) material groups up to a use for maximum application flexibility
strength of 1000 N/mm in single part production. ƒ No. 13046 010–13046 140: Standard geometry
2
with very good price/performance ratio
Execution: ƒ No. 13046 710–13046 880: Standard geometry No. 13045 010–13046 780
ƒ No. 13045 010–13046 140: Set containing taper with a very good price-performance ratio Taper tap, shape D
tap (form D) and third tap (plug) (form C)
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13045 ˜ ˜ š ˜ ˜ ˜ ˜ ˜ ˜ ˜ š š
13046010-140 ˜ ˜ š ˜ ˜ ˜ ˜ ˜ ˜ ˜ š š
13046710-780 ˜ ˜ š ˜ ˜ ˜ ˜ ˜ ˜ ˜ š š
13046810-880 ˜ ˜ š ˜ ˜ ˜ ˜ ˜ ˜ ˜ š š

Version Set Set Taper tap Third tap
Lead angle shape D/C D/C A A
13045... 13046... 13046... 13046...
Ident. No. Ident. No. Ident. No. Ident. No.
mm mm mm mm mm
G 1/8 in 28 8.8 63 7 5.5 010 O. R. 010 O. R. 710 O. R. - -
G 1/4 in 19 11.8 70 11 9 020 O. R. 020 O. R. 720 O. R. 820 O. R.
G 3/8 in 19 15.25 70 12 9 030 O. R. 030 O. R. 730 O. R. 830 O. R.
G 1/2 in 14 19 80 16 12 040 O. R. 040 O. R. 740 O. R. 840 O. R.
G 5/8 in 14 21 80 18 14.5 - - 050 O. R. 750 O. R. 850 O. R.
G 3/4 in 14 24.5 90 20 16 060 O. R. 060 O. R. 760 O. R. 860 O. R.
G 7/8 in 14 28.25 90 22 18 - - 070 O. R. - - - -
G 1 in 11 30.75 100 22 20 - - 080 O. R. 780 O. R. 880 O. R.
G 1-1/4 in 11 39.25 125 32 24 - - 100 O. R. - - - -
G 1-1/2 in 11 45.25 140 36 29 - - 120 O. R. - - - -
G 2 in 11 57 160 45 35 - - 140 O. R. - - - -
Set price, € Unit price, €
ORION = Prod. Gr. 1DA
a = Prod. Gr. 131

www.buypremiumtools.com 141
