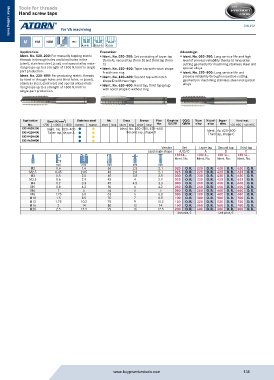

Page 136 - Buy Premium Tools ATORN Catalogue

Tools for threads
Hand screw taps

DIN 352
for VA machining
Metal cutting tools
Metal cutting tools
M HSS HSSE
3xd A (6-8) D (3,5-5) C (2-3)
Application: Execution: Advantage:
Ident. No. 020–200: For manually tapping metric ƒ Ident. No. 020–200: Set consisting of taper tap ƒ Ident. No. 020–200: Long service life and high
threads in through holes and blind holes in the (form A), second tap (form D) and third tap (form level of process reliability thanks to innovative
(steel), stainless steel, (cast) and special alloy mate- C) cutting geometry for machining stainless steel and
rial groups up to a strength of 1300 N/mm in single ƒ Ident. No. 220–400: Taper tap with notch shape special alloys
2
part production. A with one ring ƒ Ident. No. 220–800: Long service life and
Ident. No. 220–800: For producing metric threads ƒ Ident. No. 420–600: Second tap with notch process reliability through innovative cutting
by hand in through holes and blind holes, in (steel), shape D with two rings geometry in machining stainless steel and special
stainless steel, (cast iron) and special alloys mate- ƒ Ident. No. 620–800: Hand tap, third tap (plug) alloys
rial groups up to a strength of 1300 N/mm in with notch shape C without ring
2
single-part production.

2
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13014020-200 Ident. No. 020–400 ˜ ˜ Ident. No. 020–200, 420–600 Ident. No. 620–800
13014220-400 Taper tap, shape A ˜ ˜ Second tap, shape D Third tap, shape C
13014420-600 ˜ ˜
13014620-800 ˜ ˜
Version Set Taper tap Second tap Third tap
Lead angle shape A/D/C A D C
13014... 13014... 13014... 13014...
Ident. No. Ident. No. Ident. No. Ident. No.
mm mm mm mm mm
M2 0.4 1.6 36 2.8 2.1 020 O. R. 220 O. R. 420 O. R. 620 O. R.
M2.5 0.45 2.05 40 2.8 2.1 025 O. R. 225 O. R. 425 O. R. 625 O. R.
M3 0.5 2.5 40 3.5 2.5 030 O. R. 230 O. R. 430 O. R. 630 O. R.
M3.5 0.6 2.9 45 4 2.9 035 O. R. 235 O. R. 435 O. R. 635 O. R.
M4 0.7 3.3 45 4.5 3.3 040 O. R. 240 O. R. 440 O. R. 640 O. R.
M5 0.8 4.2 50 6 4.2 050 O. R. 250 O. R. 450 O. R. 650 O. R.
M6 1 5 56 6 5 060 O. R. 260 O. R. 460 O. R. 660 O. R.
M8 1.25 6.8 63 6 6.8 080 O. R. 280 O. R. 480 O. R. 680 O. R.
M10 1.5 8.5 70 7 8.5 100 O. R. 300 O. R. 500 O. R. 700 O. R.
M12 1.75 10.2 75 9 10.2 120 O. R. 320 O. R. 520 O. R. 720 O. R.
M16 2 14 80 12 14 160 O. R. 360 O. R. 560 O. R. 760 O. R.
M20 2.5 17.5 95 16 17.5 200 O. R. 400 O. R. 600 O. R. 800 O. R.
Set price, € Unit price, €
