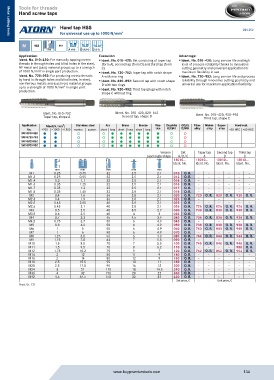

P. 134
Tools for threads
Hand screw taps
Hand tap HSS DIN 352
for universal use up to 1000 N/mm 2
Metal cutting tools
Metal cutting tools
M HSS
3xd A (6-8) D (3,5-5) C (2-3)
Application: Execution: Advantage:
Ident. No. 010–420: For manually tapping metric Ident. No. 010–420: Set consisting of taper tap Ident. No. 010–420: Long service life and high
threads in through holes and blind holes in the steel, (form A), second tap (form D) and third tap (form level of process reliability thanks to innovative
NF metal and (cast) material groups up to a strength C) cutting geometry and universal application for
of 1000 N/mm in single part production. Ident. No. 720–752: Taper tap with notch shape maximum flexibility in use
2
Ident. No. 720–952: For producing metric threads A with one ring Ident. No. 720–952: Long service life and process
by hand in through holes and blind holes, in steel, Ident. No. 820–852: Second tap with notch shape reliability through innovative cutting geometry and
non-ferrous metals and (cast iron) material groups D with two rings universal use for maximum application flexibility
up to a strength of 1000 N/mm in single-part Ident. No. 920–952: Third tap (plug) with notch
2
production. shape C without ring
Ident. No. 010–752 Ident. No. 010–420, 820–852 Ident. No. 010–420, 920–952
Taper tap, shape A Second tap, shape D Third tap, shape C
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13010010-420
13010720-752
13010820-852
13010920-952
Version Set Taper tap Second tap Third tap
Lead angle shape A/D/C A D C
13010... 13010... 13010... 13010...
Ident. No. Ident. No. Ident. No. Ident. No.
mm mm mm mm mm
M1 0.25 0.75 32 2.5 2.1 010 O. R. - - - - - -
M1.2 0.25 0.95 32 2.5 2.1 012 O. R. - - - - - -
M1.4 0.3 1.1 32 2.5 2.1 014 O. R. - - - - - -
M1.6 0.35 1.25 32 2.5 2.1 016 O. R. - - - - - -
M1.7 0.35 1.3 32 2.5 2.1 017 O. R. - - - - - -
M1.8 0.35 1.45 32 2.5 2.1 018 O. R. - - - - - -
M2 0.4 1.6 36 2.8 2.1 020 O. R. 720 O. R. 820 O. R. 920 O. R.
M2.3 0.4 1.9 36 2.8 2.1 023 O. R. - - - - - -
M2.5 0.45 2.05 40 2.8 2.1 025 O. R. - - - - - -
M2.6 0.45 2.1 40 2.8 2.1 026 O. R. 726 O. R. 826 O. R. 926 O. R.
M3 0.5 2.5 40 3.5 2.7 030 O. R. 730 O. R. 830 O. R. 930 O. R.
M3.5 0.6 2.9 45 4 3 035 O. R. - - - - - -
M4 0.7 3.3 45 4.5 3.4 040 O. R. 734 O. R. 834 O. R. 934 O. R.
M4.5 0.75 3.7 50 6 4.9 045 O. R. - - - - - -
M5 0.8 4.2 50 6 4.9 050 O. R. 738 O. R. 838 O. R. 938 O. R.
M6 1 5 50 6 4.9 060 O. R. 740 O. R. 840 O. R. 940 O. R.
M7 1 6 50 6 4.9 070 O. R. - - - - - -
M8 1.25 6.8 56 6 4.9 080 O. R. 744 O. R. 844 O. R. 944 O. R.
M9 1.25 7.8 63 7 5.5 090 O. R. - - - - - -
M10 1.5 8.5 70 7 5.5 100 O. R. 748 O. R. 848 O. R. 948 O. R.
M11 1.5 9.5 70 8 6.2 110 O. R. - - - - 950 O. R.
M12 1.75 10.2 75 9 7 120 O. R. 752 O. R. 852 O. R. 952 O. R.
M14 2 12 80 11 9 140 O. R. - - - - - -
M16 2 14 80 12 9 160 O. R. - - - - - -
M18 2.5 15.5 95 14 11 180 O. R. - - - - - -
M20 2.5 17.5 95 16 12 200 O. R. - - - - - -
M24 3 21 110 18 14.5 240 O. R. - - - - - -
M36 4 32 150 28 22 360 O. R. - - - - - -
M42 4.5 37.5 150 32 24 420 O. R. - - - - - -
Set price, € Unit price, €
Prod. Gr. 131
