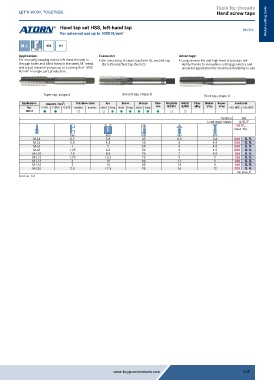

Page 135 - Buy Premium Tools ATORN Catalogue

Tools for threads
Hand screw taps

Hand tap set HSS, left-hand tap DIN 352 Metal cutting tools
For universal use up to 1000 N/mm 2

M-L HSS
3xd
Application: Execution: Advantage:
For manually tapping metric left-hand threads in ƒ Set consisting of taper tap (form A), second tap ƒ Long service life and high level of process reli-
through holes and blind holes in the steel, NF metal (form D) and third tap (form C) ability thanks to innovative cutting geometry and
and (cast) material groups up to a strength of 1000 universal application for maximum flexibility in use
N/mm in single part production.
2

Taper tap, shape A Second tap, shape D Third tap, shape C
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13012 ˜ ˜ š š ˜ ˜ ˜ ˜ ˜ ˜ š š
Version Set
Lead angle shape A/D/F
13012...
Ident. No.
mm mm mm mm mm
M-L4 0.7 3.3 45 4.5 3.4 040 O. R.
M-L5 0.8 4.2 50 6 4.9 050 O. R.
M-L6 1 5 50 6 4.9 060 O. R.
M-L8 1.25 6.8 56 6 4.9 080 O. R.
M-L10 1.5 8.5 70 7 5.5 100 O. R.
M-L12 1.75 10.2 75 9 7 120 O. R.
M-L14 2 12 80 11 9 140 O. R.
M-L16 2 14 80 12 9 160 O. R.
M-L20 2.5 17.5 95 16 12 200 O. R.
Set price, €
Prod. Gr. 131
