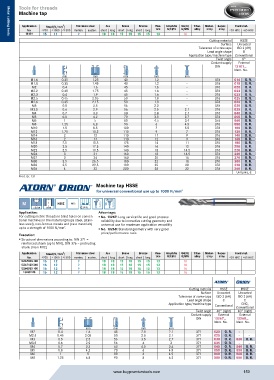

Tools for threads
Machine tap

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13101 15 11 9 18 18 15 18 15 15 13 16
Metal cutting tools
Metal cutting tools
Cutting material HSSE
Surface Uncoated
Tolerance of screw taps ISO 2 (6H)
Lead angle shape B
Application type/machine type Conventional
Twist angle 0°
Coolant supply External
DIN 13101...
Ident. No.
mm mm mm mm mm
M1.6 0.35 1.25 40 1.2 - 376 016 O. R.
M1.8 0.35 1.45 40 1.2 - 376 018 O. R.
M2 0.4 1.6 45 1.6 - 376 020 O. R.
M2.2 0.45 1.75 45 1.6 - 376 022 O. R.
M2.3 0.4 1.9 45 1.6 - 376 023 O. R.
M2.5 0.45 2.05 50 1.8 - 376 025 O. R.
M2.6 0.45 2.15 50 1.8 - 376 026 O. R.
M3 0.5 2.5 56 2.2 - 376 030 O. R.
M3.5 0.6 2.9 56 2.5 2.1 376 035 O. R.
M4 0.7 3.3 63 2.8 2.1 376 040 O. R.
M5 0.8 4.2 70 3.5 2.7 376 050 O. R.
M6 1 5 80 4.5 3.4 376 060 O. R.
M8 1.25 6.8 90 6 4.9 376 080 O. R.
M10 1.5 8.5 100 7 5.5 376 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R.
M14 2 12 110 11 9 376 140 O. R.
M16 2 14 110 12 9 376 160 O. R.
M18 2.5 15.5 125 14 11 376 180 O. R.
M20 2.5 17.5 140 16 12 376 200 O. R.
M22 2.5 19.5 140 18 14.5 376 220 O. R.
M24 3 21 160 18 14.5 376 240 O. R.
M27 3 24 160 20 16 376 270 O. R.
M30 3.5 26.5 180 22 18 376 300 O. R.
M33 3.5 29.5 180 25 20 376 330 O. R.
M36 4 32 200 28 22 376 360 O. R.
Unit price, €
Prod. Gr. 131
Machine tap HSSE
for universal conventional use up to 1000 N/mm 2

conv. CNC/conv.
M HSSE
2,5xd 3xd C (2-3)
Application: Advantage:
For cutting metric threads in blind holes on conven- ƒ No. 13267: Long service life and good process
tional machines in the material groups steel, (stain- reliability due to innovative cutting geometry and
less steel), non-ferrous metals and (cast materials) universal use for maximum application versatility
up to a strength of 1000 N/mm . 2 ƒ No. 13268: Standard geometry with very good
Execution: price/performance ratio
ƒ Structural dimensions according to: DIN 371 =
reinforced shank (up to M10), DIN 376 = protruding
shank (from M12)
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13267020-100 16 12 9 18 18 15 18 15 15 13 16
13267120-360 16 12 9 18 18 15 18 15 15 13 16
13268030-100 16 12 9 18 18 15 18 15 15 13 16
13268120 16 12 9 18 18 15 18 15 15 13 16

Cutting material HSSE HSSE
Surface Uncoated Uncoated
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H)
Lead angle shape C C
Application type/machine type Conventional CNC,
Twist angle 40° (right) Conventional
40° (right)
Coolant supply External External
DIN 13267... 13268...
Ident. No. Ident. No.
mm mm mm mm mm
M2 0.4 1.6 45 2.8 2.1 371 020 O. R. - -
M2.5 0.45 2.05 50 2.8 2.1 371 025 O. R. - -
M3 0.5 2.5 56 3.5 2.7 371 030 O. R. 030 O. R.
M3.5 0.6 2.9 56 4 3 371 035 O. R. - -
M4 0.7 3.3 63 4.5 3.4 371 040 O. R. 040 O. R.
M5 0.8 4.2 70 6 4.9 371 050 O. R. 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R. 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R. 080 O. R.
