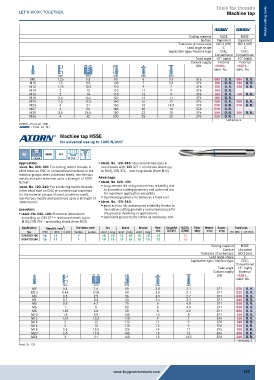

Tools for threads
Metal cutting tools
Machine tap

Cutting material HSSE HSSE
Surface Vaporised Vaporised
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H)
Lead angle shape C C
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 40° (right) 40° (right)
Coolant supply External External
DIN 13283... 13321...
Ident. No. Ident. No.
mm mm mm mm mm
M8 1.25 6.8 90 6 4.9 376 080 O. R. 080 O. R.
M10 1.5 8.5 100 7 5.5 376 100 O. R. 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R. 120 O. R.
M14 2 12 110 11 9 376 140 O. R. - -
M16 2 14 110 12 9 376 160 O. R. 160 O. R.
M18 2.5 15.5 125 14 11 376 180 O. R. - -
M20 2.5 17.5 140 16 12 376 200 O. R. 200 O. R.
M24 3 21 160 18 14.5 376 240 O. R. 240 O. R.
M27 3 24 160 20 16 376 270 O. R. - -
M30 3.5 26.5 180 22 18 376 300 O. R. 300 O. R.
M36 4 32 200 28 22 376 360 O. R. - -
Unit price, €
ORION = Prod. Gr. 1DB
a = Prod. Gr. 131
Machine tap HSSE
for universal use up to 1000 N/mm 2

CNC/conv.
M HSSE
2,5xd C (2-3)
Application: ƒ Ident. No. 120–240: structural dimensions in
Ident. No. 020–100: For cutting metric threads in accordance with: DIN 371 = reinforced shank (up
blind holes on CNC or conventional machines in the to M10), DIN 376 = over-long shank (from M12)
material groups steel, (stainless steel), non-ferrous
metals and cast materials up to a strength of 1000 Advantage:
N/mm . 2 ƒ Ident. No. 020–100:
Ident. No. 120–240: For producing metric threads ƒ Long service life and good process reliability due
in the blind hole on CNC or conventional machines to innovative cutting geometry and universal use
for the material groups of steel, (stainless steel), for maximum application versatility
non-ferrous metals and (cast iron) up to a strength of ƒ Optimised geometry for lathes as a fixed tool
1000 N/mm . 2 ƒ Ident. No. 120–240:
ƒ good service life and process reliability thanks to
Execution: innovative cutting geometry and universal use for
ƒ Ident. No. 020–100: Structural dimensions the greatest flexibility in applications
according to: DIN 371 = reinforced shank (up to ƒ optimised geometry for lathes as stationary tool
M10), DIN 376 = protruding shank (from M12)
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13281020-100 16 11 9 18 18 15 18 15 15 13 16
13281120-240 16 11 9 18 18 15 18 15 15 13 16
Cutting material HSSE
Surface Uncoated
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 15° (right)
Coolant supply External
DIN 13281...
Ident. No.
mm mm mm mm mm
M2 0.4 1.6 45 2.8 2.1 371 020 O. R.
M2.5 0.45 2.05 50 2.8 2.1 371 025 O. R.
M3 0.5 2.5 56 3.5 2.7 371 030 O. R.
M4 0.7 3.3 63 4.5 3.4 371 040 O. R.
M5 0.8 4.2 70 6 4.9 371 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R.
M14 2 12 110 11 9 376 140 O. R.
M16 2 14 110 12 9 376 160 O. R.
M18 2.5 15.5 125 14 11 376 180 O. R.
M20 2.5 17.5 140 16 12 376 200 O. R.
M24 3 21 160 18 14.5 376 240 O. R.
Unit price, €
Prod. Gr. 131
