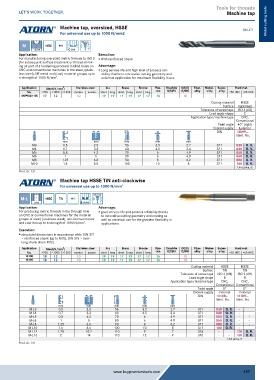

Tools for threads
Machine tap

Machine tap, oversized, HSSE DIN 371 Metal cutting tools
For universal use up to 1000 N/mm2

CNC/conv.
M HSSE
2,5xd C (2-3)
Application: Execution:
For manufacturing oversized metric threads to ISO 3 ƒ With reinforced shank
(for subsequent surface treatment or thread shrink-
ing as part of a hardening process) in blind holes on Advantage:
CNC and conventional machines in the steel, (stain- ƒ Long service life and high level of process reli-
less steel), NF metal and (cast) material groups up to ability thanks to innovative cutting geometry and
a strength of 1000 N/mm . 2 universal application for maximum flexibility in use
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13099030-100 17 12 10 19 19 17 19 17 17 15 18
Cutting material HSSE
Surface Vaporised
Tolerance of screw taps ISO 3 (6G)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 40° (right)
Coolant supply External
DIN 13099...
Ident. No.
mm mm mm mm mm
M3 0.5 2.5 56 3.5 2.7 371 030 O. R.
M4 0.7 3.3 63 4.5 3.4 371 040 O. R.
M5 0.8 4.2 70 6 4.9 371 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R.
Unit price, €
Prod. Gr. 131
Machine tap HSSE TiN anti-clockwise
for universal use up to 1000 N/mm 2

CNC/conv.
M-L HSSE TiN
3xd B (3,5-5)
Application: Advantage:
For producing metric threads in the through hole ƒ good service life and process reliability thanks
on CNC or conventional machines for the material to innovative cutting geometry and coating as
groups of steel, (stainless steel), non-ferrous metals well as universal use for the greatest flexibility in
and cast iron up to a strength of 1000 N/mm . 2 applications
Execution:
ƒ structural dimensions in accordance with: DIN 371
= reinforced shank (up to M10), DIN 376 = over-
long shank (from M12)
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13108 18 12 10 19 19 17 19 17 17 15 18
13109 18 12 10 19 19 17 19 17 17 15 18
Cutting material HSSE HSSE
Surface TiN TiN
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H)
Lead angle shape B B
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 0° 0°
Coolant supply External External
DIN 13108... 13109...
Ident. No. Ident. No.
mm mm mm mm mm
M-L3 0.5 2.5 56 3.5 2.7 371 030 O. R. - -
M-L4 0.7 3.3 63 4.5 3.4 371 040 O. R. - -
M-L5 0.8 4.2 70 6 4.9 371 050 O. R. - -
M-L6 1 5 80 6 4.9 371 060 O. R. - -
M-L8 1.25 6.8 90 8 6.2 371 080 O. R. - -
M-L10 1.5 8.5 100 10 8 371 100 O. R. - -
M-L12 1.75 10.2 110 9 7 376 - - 120 O. R.
M-L16 2 14 110 12 9 376 - - 160 O. R.
Unit price, €
Prod. Gr. 131
