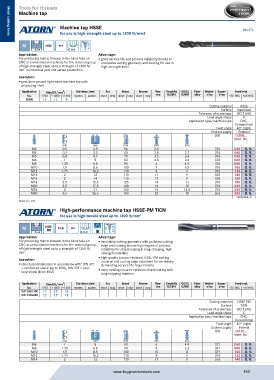

Page 160 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Machine tap HSSE DIN 376
for use in high-strength steel up to 1300 N/mm2
Metal cutting tools
CNC/conv.
M HSSE
2,5xd C (2-3)
Application: Advantage:
For producing metric threads in the blind hole on ƒ good service life and process reliability thanks to
CNC or conventional machines for the material group innovative cutting geometry and coating for use in
of high-strength steel up to a strength of 1300 N/ high-strength steel
mm in individual part and series production.
2
Execution:
ƒ precision-ground right-hand machine tap with
projecting shaft
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13308 16 12 9
Cutting material HSSE
Surface Vaporised
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 40° (right)
Coolant supply External
DIN 13308...
Ident. No.
mm mm mm mm mm
M3 0.5 2.5 56 2.2 - 376 030 O. R.
M4 0.7 3.3 63 2.8 2.1 376 040 O. R.
M5 0.8 4.2 70 3.5 3.4 376 050 O. R.
M6 1 5 80 4.5 3.4 376 060 O. R.
M8 1.25 6.8 90 6 4.9 376 080 O. R.
M10 1.5 8.5 100 7 5.5 376 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R.
M14 2 12 110 11 9 376 140 O. R.
M16 2 14 110 12 9 376 160 O. R.
M18 2.5 15.5 125 14 11 376 180 O. R.
M20 2.5 17.5 140 16 12 376 200 O. R.
M24 3 21 160 18 14.5 376 240 O. R.
M30 3.5 26.5 180 22 18 376 300 O. R.
Unit price, €
Prod. Gr. 131
High-performance machine tap HSSE-PM TiCN
for use in high-tensile steel up to 1300 N/mm 2
CNC/conv.
M HSSE- TiCN
2,5xd PM C (2-3) IK
Application: Advantage:
For producing metric threads in the blind hole on ƒ innovative cutting geometry with polished cutting
CNC or conventional machines for the material group edge and coating ensure high degree of process
of high-strength steel up to a strength of 1300 N/ reliability for chip breaking in long-chipping, high-
mm . 2 strength materials
Execution: ƒ high-quality torsion-resistant HSSE-PM cutting
material and cutting edge treatment for extremely
ƒ structural dimensions in accordance with: DIN 371 demanding service life requirements
= reinforced shank (up to M10), DIN 376 = over- ƒ inner cooling ensures optimum chip breaking with
long shank (from M12) long-chipping material
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13312060-100 22 17 15
13312120-240 22 17 15
Cutting material HSSE-PM
Surface TiCN
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 40° (right)
Coolant supply Internal
DIN 13312...
Ident. No.
mm mm mm mm mm
M6 1 5 80 6 4.9 371 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R.
M14 2 12 110 11 9 376 140 O. R.

www.buypremiumtools.com 160
