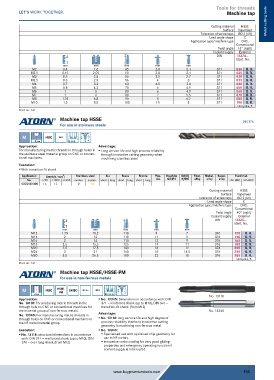

P. 165
Tools for threads
Machine tap
Cutting material HSSE Metal cutting tools
Surface Vaporised
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 15° (right)
Coolant supply External
DIN 13274...
Ident. No.
mm mm mm mm mm
M2 0.4 1.6 45 2.8 2.1 371 020 O. R.
M2.5 0.45 2.05 50 2.8 2.1 371 025 O. R.
M3 0.5 2.5 56 3.5 2.7 371 030 O. R.
M3.5 0.6 2.9 56 4 3 371 035 O. R.
M4 0.7 3.3 63 4.5 3.4 371 040 O. R.
M5 0.8 4.2 70 6 4.9 371 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R.
M7 1 6 80 7 5.5 371 070 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R.
Unit price, €
Prod. Gr. 131
Machine tap HSSE
For use in stainless steels DIN 376
CNC/conv.
M HSSE
2,5xd C (2-3)
Application: Advantage:
For manufacturing metric threads in through holes in Long service life and high process reliability
the stainless steel material group on CNC or conven- through innovative cutting geometry when
tional machines. machining stainless steel
Execution:
With transition-fit shank
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13325120-300 16 12 9 10
Cutting material HSSE
Surface Vaporised
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 40° (right)
Coolant supply External
DIN 13325...
Ident. No.
mm mm mm mm mm
M12 1.75 10.2 110 9 7 376 120 O. R.
M14 2 12 110 11 9 376 140 O. R.
M16 2 14 110 12 9 376 160 O. R.
M18 2.5 15.5 125 14 11 376 180 O. R.
M20 2.5 17.5 140 16 12 376 200 O. R.
M24 3 21 160 18 14.5 376 240 O. R.
M30 3.5 26.5 180 22 18 376 300 O. R.
Unit price, €
Prod. Gr. 131
Machine tap HSSE/HSSE-PM
for use in non-ferrous metals
CNC/conv.
M HSSE HSSE- CARBO ISO 2 x
3xd PM B (3,5-5) No. 13118
Application: No. 13345: Dimensions in accordance with: DIN
No. 13118: For producing metric threads in the 371 = reinforced shank (up to M10), DIN 376 =
through hole on CNC or conventional machines for transition-fit shank (from M12)
the material group of non-ferrous metals. No. 13345
No. 13345: For manufacturing metric threads in Advantage:
through holes on CNC or conventional machines in No. 13118: long service life and high degree of
the NF metal material group. process reliability thanks to innovative cutting
geometry in machining non-ferrous metal
Execution: No. 13345:
No. 13118: structural dimensions in accordance Specialised use with optimised chip geometry for
with: DIN 371 = reinforced shank (up to M10), DIN use in NF metals.
376 = over-long shank (from M12) Innovative carbo coating for very good gliding
properties and emergency operating function if
coolant supply is interrupted.
