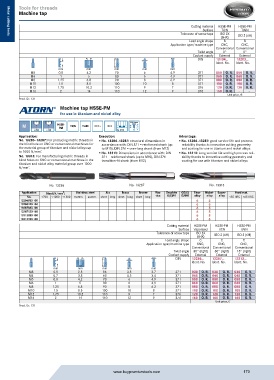

Page 170 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Cutting material HSSE-PM HSSE-PM
Surface TiCN TiAlN
Tolerance of screw taps ISO 2X
(6HX) ISO 2 (6H)
Metal cutting tools
Metal cutting tools
Lead angle shape B B
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 0° 0°
Coolant supply External External
DIN 13134... 13203...
Ident. No. Ident. No.
mm mm mm mm mm
M5 0.8 4.2 70 6 4.9 371 050 O. R. 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R. 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R. 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R. 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R. 120 O. R.
M16 2 14 110 12 9 376 160 O. R. - -
Unit price, €
Prod. Gr. 131
Machine tap HSSE-PM
for use in titanium and nickel alloy

CNC/conv.
M HSSE- TiCN TiAlN ISO 2 x
PM
2xd 1xd C (2-3)
Application: Execution: Advantage:
No. 13286–13287: For producing metric threads in ƒ No. 13286–13287: structural dimensions in ƒ No. 13286–13287: good service life and process
the blind hole on CNC or conventional machines for accordance with: DIN 371 = reinforced shank (up reliability thanks to innovative cutting geometry
the material group of titanium and nickel alloys up to M10), DIN 376 = over-long shank (from M12) and coating for use in titanium and nickel alloys
to 1000 N/mm . 2 ƒ No. 13313: Dimensions in accordance with: DIN ƒ No. 13313: Long service life and high process reli-
No. 13313: For manufacturing metric threads in 371 = reinforced shank (up to M10), DIN 376 = ability thanks to innovative cutting geometry and
blind holes on CNC or conventional machines in the transition-fit shank (from M12) coating for use with titanium and nickel alloys
titanium and nickel alloy material group over 1000
N/mm . 2

No. 13286 No. 13287 No. 13313
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13286030-100 6 5
13286120-160 6 5
13287030-100 6 5
13287120-160 6 5
13313030-100 6 5
13313120-160 6 5
Cutting material HSSE-PM HSSE-PM HSSE-PM
Surface Vaporised TiCN TiAlN
Tolerance of screw taps ISO 2X ISO 2 (6H) ISO 2 (6H)
(6HX)
Lead angle shape C C C
Application type/machine type CNC, CNC, CNC,
Conventional Conventional Conventional
Twist angle 30° (right) 30° (right) 15° (right)
Coolant supply External External External
DIN 13286... 13287... 13313...
Ident. No. Ident. No. Ident. No.
mm mm mm mm mm
M3 0.5 2.5 56 3.5 2.7 371 030 O. R. 030 O. R. 030 O. R.
M4 0.7 3.3 63 4.5 3.4 371 040 O. R. 040 O. R. 040 O. R.
M5 0.8 4.2 70 6 4.9 371 050 O. R. 050 O. R. 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R. 060 O. R. 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R. 080 O. R. 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R. 100 O. R. 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R. 120 O. R. 120 O. R.
M16 2 14 110 12 9 376 160 O. R. 160 O. R. 160 O. R.
Unit price, €
Prod. Gr. 131
