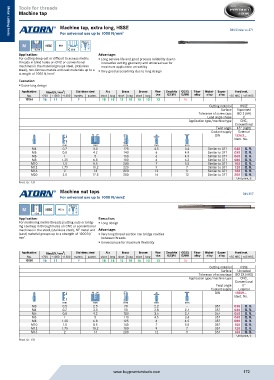

P. 172
Tools for threads
Machine tap
Machine tap, extra long, HSSE DIN Similar to 371
For universal use up to 1000 N/mm 2
Metal cutting tools
Metal cutting tools
CNC/conv.
M HSSE
2,5xd C (2-3)
Application: Advantage:
For cutting deep-set or difficult to access metric Long service life and good process reliability due to
threads in blind holes on CNC or conventional innovative cutting geometry and universal use for
machines in the material groups steel, (stainless maximum application versatility
steel), non-ferrous metals and cast materials up to a Very good accessibility due to long design
strength of 1000 N/mm . 2
Execution:
Extra-long design
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13263 16 11 9 18 18 15 18 15 15 13 16
Cutting material HSSE
Surface Vaporised
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 45° (right)
Coolant supply External
DIN 13263...
Ident. No.
mm mm mm mm mm
M4 0.7 3.3 125 4.5 3.4 Similar to 371 040 O. R.
M5 0.8 4.2 140 6 4.9 Similar to 371 050 O. R.
M6 1 5 160 6 4.9 Similar to 371 060 O. R.
M8 1.25 6.8 180 6 6.2 Similar to 371 080 O. R.
M10 1.5 8.5 200 7 5.5 Similar to 371 100 O. R.
M12 1.75 10.2 220 9 7 Similar to 371 120 O. R.
M16 2 14 220 12 9 Similar to 371 160 O. R.
M20 2.5 17.5 280 16 12 Similar to 371 200 O. R.
Unit price, €
Prod. Gr. 131
Machine nut taps
For universal use up to 1000 N/mm2 DIN 357
CNC/conv.
M HSSE ISO 2 x
3xd
Application: Execution:
For machining metric threads (cutting nuts or bridg- Long design
ing cavities) in through holes on CNC or conventional
machines in the steel, (stainless steel), NF metal and Advantage:
(cast) material groups up to a strength of 1000 N/ Very long thread section can bridge cavities
mm . 2 between threads
Universal use for maximum flexibility
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13059 16 11 9 18 18 15 18 15 15 13 16
Cutting material HSSE
Surface Uncoated
Tolerance of screw taps ISO 2X (6HX)
Application type/machine type CNC,
Conventional
Twist angle 0°
Coolant supply External
DIN 13059...
Ident. No.
mm mm mm mm mm
M3 0.5 2.5 70 2.2 - 357 030 O. R.
M4 0.7 3.3 90 2.8 2.1 357 040 O. R.
M5 0.8 4.2 100 3.5 2.7 357 050 O. R.
M6 1 5 110 4.5 3.4 357 060 O. R.
M8 1.25 6.8 125 6 4.9 357 080 O. R.
M10 1.5 8.5 140 7 5.5 357 100 O. R.
M12 1.75 10.2 180 9 7 357 120 O. R.
M16 2 14 200 12 9 357 160 O. R.
Unit price, €
Prod. Gr. 131
www.buypremiumtools.com 172
