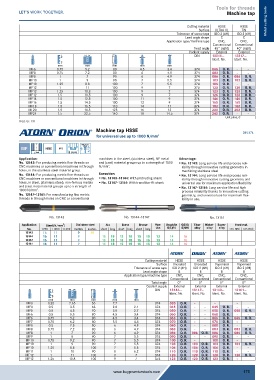

Page 175 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Cutting material HSSE HSSE Metal cutting tools
Surface ULTRA HL TiN
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H)
Lead angle shape C C
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 45° (right) 40° (right)
Coolant supply External External
DIN 13315... 13317...
Ident. No. Ident. No.
mm mm mm mm mm
MF6 0.75 5.2 80 4.5 3.4 374 065 O. R. - -
MF8 0.75 7.2 80 6 4.9 374 083 O. R. - -
MF8 1 7 90 6 4.9 374 086 O. R. 086 O. R.
MF10 1 9 90 7 5.5 374 103 O. R. 103 O. R.
MF10 1.25 8.8 100 7 5.5 374 106 O. R. - -
MF12 1 11 100 9 7 374 120 O. R. 120 O. R.
MF12 1.25 10.8 100 9 7 374 123 O. R. 123 O. R.
MF12 1.5 10.5 100 9 7 374 126 O. R. 126 O. R.
MF14 1.5 12.5 100 11 9 374 146 O. R. 146 O. R.
MF16 1.5 14.5 100 12 9 374 165 O. R. 165 O. R.
MF18 1.5 16.5 110 14 11 374 183 O. R. 183 O. R.
MF20 1.5 18.5 125 16 12 374 203 O. R. 203 O. R.
MF24 1.5 22.5 140 18 14.5 374 243 O. R. - -
Unit price, €
Prod. Gr. 131
Machine tap HSSE DIN 374
for universal use up to 1000 N/mm 2

CNC/conv.
MF HSSE
3xd B (3,5-5)
Application: machines in the steel, (stainless steel), NF metal Advantage:
No. 13143: For producing metric fine threads on and (cast) material groups up to a strength of 1000 ƒ No. 13143: Long service life and process reli-
CNC machines or conventional machines in through N/mm . 2 ability through innovative cutting geometry in
holes, in the stainless steel material group. machining stainless steel
No. 13144: For producing metric fine threads on Execution: ƒ No. 13144: Long service life and process reli-
CNC machines or conventional machines in through ƒ No. 13143–13144: With protruding shank ability through innovative cutting geometry and
holes, in steel, (stainless steel), non-ferrous metals ƒ No. 13147–13161: With transition-fit shank universal use for maximum application flexibility
and (cast iron) material groups up to a strength of ƒ No. 13147–13161: Long service life and high
1000 N/mm . 2 process reliability thanks to innovative cutting
No. 13147–13161: For manufacturing fine metric geometry, and universal use for maximum flex-
threads in through holes on CNC or conventional ibility in use.

No. 13143 No. 13144–13147 No. 13161
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13143 16 11 9 10
13144 16 11 9 18 18 15 18 15 15 13 14 16
13147 16 11 9 18 18 15 18 15 15 13 14 16
13161 16 11 9 18 18 15 18 15 15 13 14 16

Cutting material HSSE HSSE HSSE HSSE
Surface Uncoated Uncoated Vaporised Vaporised
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H) ISO 2 (6H) ISO 2 (6H)
Lead angle shape B B B B
Application type/machine type CNC, CNC, CNC, CNC,
Conventional Conventional Conventional Conventional
Twist angle 0° 0° 0° 0°
Coolant supply External External External External
DIN 13144... 13147... 13143... 13161...
Ident. No. Ident. No. Ident. No. Ident. No.
mm mm mm mm mm
MF3 0.35 2.65 56 2.2 - 374 030 O. R. - - - - - -
MF4 0.5 3.5 63 2.8 2.1 374 045 O. R. - - 045 O. R. - -
MF5 0.5 4.5 70 3.5 2.7 374 050 O. R. - - 050 O. R. 050 O. R.
MF6 0.5 5.5 80 4.5 3.4 374 060 O. R. - - 060 O. R. - -
MF6 0.75 5.2 80 4.5 3.4 374 065 O. R. - - 065 O. R. 065 O. R.
MF7 0.75 6.2 80 5.5 4.3 374 070 O. R. - - 070 O. R. - -
MF8 0.5 7.5 80 6 4.9 374 080 O. R. - - 080 O. R. - -
MF8 0.75 7.2 80 6 4.9 374 083 O. R. - - 083 O. R. 083 O. R.
MF8 1 7 90 6 4.9 374 086 O. R. 086 O. R. 086 O. R. 086 O. R.
MF9 1 8 90 7 5.5 374 090 O. R. - - 090 O. R. - -
MF10 0.75 9.2 90 7 5.5 374 100 O. R. - - 100 O. R. - -
MF10 1 9 90 7 5.5 374 103 O. R. 103 O. R. 103 O. R. 103 O. R.
MF10 1.25 8.8 100 7 5.5 374 106 O. R. 106 O. R. 106 O. R. - -
MF11 1 10 90 8 6.2 374 110 O. R. 110 O. R. 110 O. R. - -
MF12 1 11 100 9 7 374 120 O. R. 120 O. R. 120 O. R. 120 O. R.
MF12 1.25 10.8 100 9 7 374 123 O. R. 123 O. R. 123 O. R. - -
