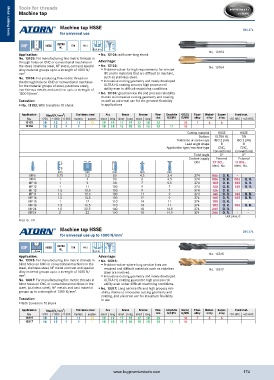

Page 174 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Machine tap HSSE DIN 374
for universal use
Metal cutting tools
Metal cutting tools
CNC/conv.
MF HSSE ULTRA TiN
3xd HL B (3,5-5) No. 13103
Application: ƒ No. 13104: with over-long shank
No. 13103: For manufacturing fine metric threads in
through holes on CNC or conventional machines in Advantage:
the steel, stainless steel, NF metal, cast and special ƒ No. 13103: No. 13104
alloy material groups up to a strength of 1000 N/ ƒ Problem-solver for high requirements for service
mm . 2 life and in materials that are difficult to machine,
No. 13104: For producing fine metric threads in such as stainless steel.
the through hole on CNC or conventional machines ƒ Innovative cutting geometry and newly developed
for the material groups of steel, (stainless steel), ULTRA HL coating ensures high process reli-
non-ferrous metals and cast iron up to a strength of ability even in difficult machining conditions
1300 N/mm . 2 ƒ No. 13104: good service life and process reliability
thanks to innovative cutting geometry and coating
Execution: as well as universal use for the greatest flexibility
ƒ No. 13103: With transition-fit shank in applications
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13103 18 12 8 11 10 19 19 17 19 17 18 13 18 7 6 6
13104 16 12 9 9 7 18 18 15 18 15 15 13 14 16
Cutting material HSSE HSSE
Surface ULTRA HL TiN
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H)
Lead angle shape B B
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 0° 0°
Coolant supply External External
DIN 13103... 13104...
Ident. No. Ident. No.
mm mm mm mm mm
MF6 0.75 5.2 80 4.5 3.4 374 065 O. R. - -
MF8 1 7 90 6 4.9 374 086 O. R. 086 O. R.
MF10 1 9 90 7 5.5 374 103 O. R. 103 O. R.
MF12 1 11 100 9 7 374 120 O. R. 120 O. R.
MF12 1.5 10.5 100 9 7 374 126 O. R. - -
MF14 1.5 12.5 100 11 9 374 146 O. R. 146 O. R.
MF16 1.5 14.5 100 12 9 374 165 O. R. 165 O. R.
MF18 1 17 110 14 11 374 180 O. R. - -
MF18 1.5 16.5 110 14 11 374 183 O. R. 183 O. R.
MF24 1.5 22.5 140 18 14.5 374 243 O. R. - -
MF24 2 22 140 18 14.5 374 246 O. R. - -
Unit price, €
Prod. Gr. 131
Machine tap HSSE
for universal use up to 1000 N/mm 2 DIN 374
CNC/conv.
MF HSSE ULTRA TiN
2,5xd HL C (2-3)
Application: Advantage: No. 13315
No. 13315: For manufacturing fine metric threads in ƒ No. 13315:
blind holes on CNC or conventional machines in the ƒ Problem-solver where long service lives are
steel, stainless steel, NF metal and cast and special required and difficult materials such as stainless No. 13317
alloy material groups up to a strength of 1000 N/ steel are involved.
mm . 2 ƒ Innovative cutting geometry and newly developed
No. 13317: For manufacturing fine metric threads in ULTRA HL coating guarantee high process reli-
blind holes on CNC or conventional machines in the ability even under difficult machining conditions.
steel, (stainless steel), NF metals and cast material ƒ No. 13317: Long service life and high process reli-
groups up to a strength of 1300 N/mm . 2 ability thanks to innovative cutting geometry and
Execution: coating, and universal use for maximum flexibility
in use
ƒ With transition-fit shank
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13315 18 12 8 11 10 19 19 17 19 17 18 13 18 7 6 6
13317 16 12 9 9 7 18 18 15 18 15 15 13 14 16
