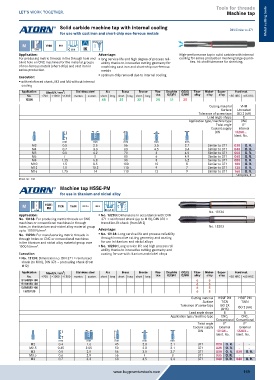

Page 169 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Solid carbide machine tap with internal cooling DIN Similar to 371 Metal cutting tools
for use with cast iron and short-chip non-ferrous metals

CNC/Synchro
M VHM
3xd C (2-3) IK
Application: Advantage: High-performance tap in solid carbide with internal
For producing metric threads in the through hole and ƒ long service life and high degree of process reli- cooling for series production involving large quanti-
blind hole on CNC machines for the material groups ability thanks to innovative cutting geometry for ties. h6 shaft tolerance for shrinking.
of non-ferrous metals (short-chip) and cast iron in machining cast iron and short-chip non-ferrous
series production. metals
Execution: ƒ optimum chip removal due to internal cooling
ƒ with reinforced shank, M3 and M4 without internal
cooling
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13250 45 35 32 25 35 35
Cutting material VHM
Surface Uncoated
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC
Twist angle 0°
Coolant supply Internal
DIN 13250...
Ident. No.
mm mm mm mm mm
M3 0.5 2.5 56 3.5 2.7 Similar to 371 030 O. R.
M4 0.7 3.3 63 4.5 3.4 Similar to 371 040 O. R.
M5 0.8 4.2 70 6 4.9 Similar to 371 050 O. R.
M6 1 5 80 6 4.9 Similar to 371 060 O. R.
M8 1.25 6.8 90 8 6.2 Similar to 371 080 O. R.
M10 1.5 8.5 100 10 8 Similar to 371 100 O. R.
M12 1.5 10.2 110 9 7 Similar to 371 120 O. R.
M16 1.75 14 110 12 9 Similar to 371 160 O. R.
Unit price, €
Prod. Gr. 131
Machine tap HSSE-PM
for use in titanium and nickel alloy

CNC/conv.
M HSSE- TiCN TiAlN ISO 2 x
3xd PM B (3,5-5) No. 13134
Application: ƒ No. 13203: Dimensions in accordance with: DIN
No. 13134: For producing metric threads on CNC 371 = reinforced shank (up to M10), DIN 376 =
machines or conventional machines in through transition-fit shank (from M12)
holes, in the titanium-and-nickel alloy material group No. 13203
up to 1000 N/mm . 2 Advantage:
No. 13203: For manufacturing metric threads in ƒ No. 13134: Long service life and process reliability
through holes on CNC or conventional machines through innovative cutting geometry and coating
in the titanium and nickel alloy material group over for use in titanium-and-nickel alloys
1000 N/mm . 2 ƒ No. 13203: Long service life and high process reli-
ability thanks to innovative cutting geometry and
Execution: coating for use with titanium and nickel alloys
ƒ No. 13134: Dimensions to: DIN 371 = reinforced
shank (to M10), DIN 376 = protruding shank (from
M12)
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13134020-100 6 5
13134120-160 6 5
13203030-100 6 5
13203120 6 5
Cutting material HSSE-PM HSSE-PM
Surface TiCN TiAlN
Tolerance of screw taps ISO 2X ISO 2 (6H)
(6HX)
Lead angle shape B B
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 0° 0°
Coolant supply External External
DIN 13134... 13203...
Ident. No. Ident. No.
mm mm mm mm mm
M2 0.4 1.6 45 2.8 2.1 371 020 O. R. - -
M2.5 0.45 2.05 50 2.8 2.1 371 025 O. R. - -
M3 0.5 2.5 56 3.5 2.7 371 030 O. R. 030 O. R.
M3.5 0.6 2.9 56 4 3 371 035 O. R. - -
M4 0.7 3.3 63 4.5 3.4 371 040 O. R. 040 O. R.
