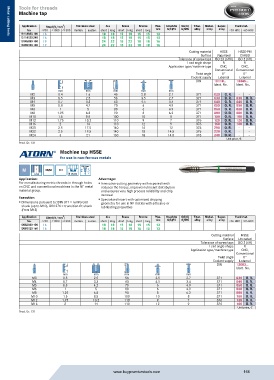

Page 166 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13118020-100 16 18 18 15 18 15 15 13
13118120-240 16 18 18 15 18 15 15 13
Metal cutting tools
Metal cutting tools
13345030-100 19 24 22 18 22 18 18 16
13345120-160 19 24 22 18 22 18 18 16
Cutting material HSSE HSSE-PM
Surface Vaporised CARBO
Tolerance of screw taps ISO 2X (6HX) ISO 2 (6H)
Lead angle shape B B
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 0° 0°
Coolant supply External External
DIN 13118... 13345...
Ident. No. Ident. No.
mm mm mm mm mm
M2 0.4 1.6 45 2.8 2.1 371 020 O. R. - -
M3 0.5 2.5 56 3.5 2.7 371 030 O. R. 030 O. R.
M4 0.7 3.3 63 4.5 3.4 371 040 O. R. 040 O. R.
M5 0.8 4.2 70 6 4.9 371 050 O. R. 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R. 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R. 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R. 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R. 120 O. R.
M16 2 14 110 12 9 376 160 O. R. 160 O. R.
M20 2.5 17.5 140 16 12 376 200 O. R. - -
M22 2.5 19.5 140 18 14.5 376 220 O. R. - -
M24 3 21 160 18 14.5 376 240 O. R. - -
Unit price, €
Prod. Gr. 131
Machine tap HSSE
for use in non-ferrous metals

CNC/conv.
M HSSE
3xd B (3,5-5)
Application: Advantage:
For manufacturing metric threads in through holes ƒ Innovative cutting geometry with exposed teeth
on CNC and conventional machines in the NF metal reduces the torque, improves lubricant distribution
material group. and ensures very high process reliability and chip
removal
Execution: ƒ Specialised insert with optimised chipping
ƒ Dimensions pursuant to: DIN 371 = reinforced geometry for use in NF metals with adhesive or
shank (up to M10), DIN 376 = transition-fit shank lubricating properties
(from M12)
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13083030-100 16 18 18 15 18 15 15 13
13083120-160 16 18 18 15 18 15 15 13
Cutting material HSSE
Surface Uncoated
Tolerance of screw taps ISO 2 (6H)
Lead angle shape B
Application type/machine type CNC,
Conventional
Twist angle 0°
Coolant supply External
DIN 13083...
Ident. No.
mm mm mm mm mm
M3 0.5 2.5 56 3.5 2.7 371 030 O. R.
M4 0.7 3.3 63 4.5 3.4 371 040 O. R.
M5 0.8 4.2 70 6 4.9 371 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R.
M16 2 14 110 12 9 376 160 O. R.
Unit price, €
Prod. Gr. 131
