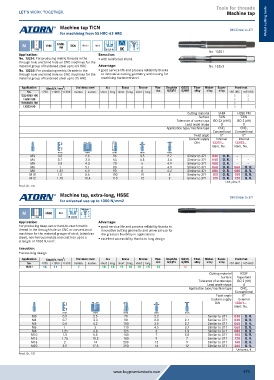

Page 171 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Machine tap TiCN DIN Similar to 371 Metal cutting tools
for machining from 55 HRC-63 HRC

CNC/conv.
M VHM HSSE- TiCN ISO 2 x
3xd PM D (3,5-5) IK No. 13251
Application: Execution:
No. 13251: For producing metric threads in the ƒ with reinforced shank
through hole and blind hole on CNC machines for the
material group of hardened steel up to 63 HRC. Advantage: No. 13253
No. 13253: For producing metric threads in the ƒ good service life and process reliability thanks
through hole and blind hole on CNC machines for the to innovative cutting geometry and coating for
material group of hardened steel up to 55 HRC. machining hardened steel
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13251030-100 5 2
13251120 5 2
13253060-100 3
13253120 3
Cutting material VHM HSSE-PM
Surface TiCN TiCN
Tolerance of screw taps ISO 2X (6HX) ISO 2 (6H)
Lead angle shape D D
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 0° 0°
Coolant supply Internal Internal
DIN 13251... 13253...
Ident. No. Ident. No.
mm mm mm mm mm
M3 0.5 2.6 56 3.5 2.7 Similar to 371 030 O. R. - -
M4 0.7 3.4 63 4.5 3.4 Similar to 371 040 O. R. - -
M5 0.8 4.3 70 6 4.9 Similar to 371 050 O. R. - -
M6 1 5.1 80 6 4.9 Similar to 371 060 O. R. 060 O. R.
M8 1.25 6.9 90 8 6.2 Similar to 371 080 O. R. 080 O. R.
M10 1.5 8.6 100 10 8 Similar to 371 100 O. R. 100 O. R.
M12 1.75 10.4 110 12 9 Similar to 371 120 O. R. 120 O. R.
Unit price, €
Prod. Gr. 131
Machine tap, extra-long, HSSE DIN Similar to 371
for universal use up to 1000 N/mm2
CNC/conv.
M HSSE
3xd B (3,5-5)
Application: Advantage:
For producing deep-set or hard-to-reach metric ƒ good service life and process reliability thanks to
thread in the through hole on CNC or conventional innovative cutting geometry and universal use for
machines for the material groups of steel, (stainless the greatest flexibility in applications
steel), non-ferrous metals and cast iron up to a ƒ excellent accessibility thanks to long design
strength of 1000 N/mm . 2
Execution:
ƒ extra-long design
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13261 16 11 9 18 18 15 18 15 15 13 16
Cutting material HSSE
Surface Vaporised
Tolerance of screw taps ISO 2 (6H)
Lead angle shape B
Application type/machine type CNC,
Conventional
Twist angle 0°
Coolant supply External
DIN 13261...
Ident. No.
mm mm mm mm mm
M3 0.5 2.5 70 2.2 - Similar to 371 030 O. R.
M4 0.7 3.3 90 2.8 2.1 Similar to 371 040 O. R.
M5 0.8 4.2 100 3.5 2.7 Similar to 371 050 O. R.
M6 1 5 110 4.5 3.7 Similar to 371 060 O. R.
M8 1.25 6.8 125 6 4.9 Similar to 371 080 O. R.
M10 1.5 8.5 140 7 5.5 Similar to 371 100 O. R.
M12 1.75 10.2 180 9 7 Similar to 371 120 O. R.
M16 2 14 200 12 9 Similar to 371 160 O. R.
M20 2.5 17.5 250 16 12 Similar to 371 200 O. R.
Unit price, €
Prod. Gr. 131
