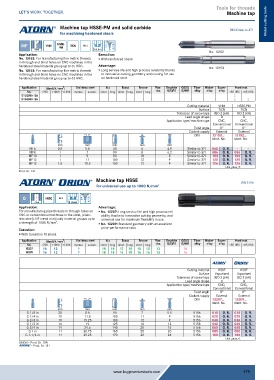

Page 179 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Machine tap HSSE-PM and solid carbide DIN Similar to 371 Metal cutting tools
for machining hardened steels

CNC/conv.
MF VHM HSSE- TiCN
1xd PM D (3,5-5) No. 13152
Application: Execution:
No. 13152: For manufacturing fine metric threads ƒ With reinforced shank
in through and blind holes on CNC machines in the
hardened steel material group up to 55 HRC. Advantage: No. 13153
No. 13153: For manufacturing fine metric threads ƒ Long service life and high process reliability thanks
in through and blind holes on CNC machines in the to innovative cutting geometry and coating for use
hardened steel material group up to 63 HRC. on hardened steel
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13152086-126 3
13153060-126 3 2
Cutting material VHM HSSE-PM
Surface TiCN TiCN
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H)
Lead angle shape D D
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 0° 0°
Coolant supply External External
DIN 13153... 13152...
Ident. No. Ident. No.
mm mm mm mm mm
MF6 0.5 5.5 80 6 4.9 Similar to 371 060 O. R. - -
MF8 1 7 90 8 6.2 Similar to 371 086 O. R. 086 O. R.
MF10 1 9 90 10 8 Similar to 371 103 O. R. 103 O. R.
MF12 1 11 100 12 9 Similar to 371 120 O. R. 120 O. R.
MF12 1.5 10.5 100 12 9 Similar to 371 126 O. R. 126 O. R.
Unit price, €
Prod. Gr. 131
Machine tap HSSE DIN 5156
for universal use up to 1000 N/mm 2
CNC/conv.
G HSSE
3xd B (3,5-5)
Application: Advantage:
For manufacturing pipe threads in through holes on ƒ No. 13207: Long service life and high process reli-
CNC or conventional machines in the steel, (stain- ability thanks to innovative cutting geometry, and
less steel), NF metal and (cast) material groups up to universal use for maximum flexibility in use.
a strength of 1000 N/mm . 2 ƒ No. 13209: Standard geometry with an excellent
Execution: price-performance ratio
ƒ With transition-fit shank
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13207 16 12 9 18 18 15 18 15 15 13 16
13209 16 12 9 18 18 15 18 15 15 13 16

Cutting material HSSE HSSE
Surface Vaporised Vaporised
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H)
Lead angle shape B B
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 0° 0°
Coolant supply External External
DIN 13207... 13209...
Ident. No. Ident. No.
mm mm mm mm mm
G 1/8 in 28 8.8 90 7 5.5 5156 010 O. R. 010 O. R.
G 1/4 in 19 11.8 100 11 9 5156 020 O. R. 020 O. R.
G 3/8 in 19 15.25 100 12 9 5156 030 O. R. 030 O. R.
G 1/2 in 14 19 125 16 12 5156 040 O. R. 040 O. R.
G 3/4 in 14 24.5 140 20 16 5156 060 O. R. 060 O. R.
G 1 in 11 30.75 160 25 20 5156 080 O. R. 080 O. R.
G 1-1/4 in 11 39.25 170 32 24 5156 100 O. R. 100 O. R.
Unit price, €
ORION = Prod. Gr. 1DB
a = Prod. Gr. 131
