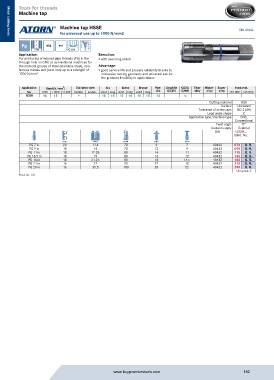

P. 182
Tools for threads
Machine tap
Machine tap HSSE DIN 40432
for universal use up to 1000 N/mm2
Metal cutting tools
Metal cutting tools
CNC/conv.
Pg HSS
3xd C (2-3)
Application: Execution:
For producing armoured pipe threads (PG) in the with over-long shank
through hole on CNC or conventional machines for
the material groups of steel (stainless steel), non- Advantage:
ferrous metals and (cast iron) up to a strength of good service life and process reliability thanks to
1000 N/mm . 2 innovative cutting geometry and universal use for
the greatest flexibility in applications
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13228 16 12 9 18 18 15 18 15 15 13 16
Cutting material HSS
Surface Uncoated
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 0°
Coolant supply External
DIN 13228...
Ident. No.
mm mm mm mm mm
PG 7 in 20 11.4 70 9 7 40432 070 O. R.
PG 9 in 18 14 70 12 9 40432 090 O. R.
PG 11 in 18 17.25 80 14 11 40432 110 O. R.
PG 13.5 in 18 19 80 16 12 40432 135 O. R.
PG 16 in 18 21.25 80 18 14.5 40432 160 O. R.
PG 21 in 16 27 90 22 18 40432 210 O. R.
PG 29 in 16 35.5 100 28 22 40432 290 O. R.
Unit price, €
Prod. Gr. 131
www.buypremiumtools.com 182
