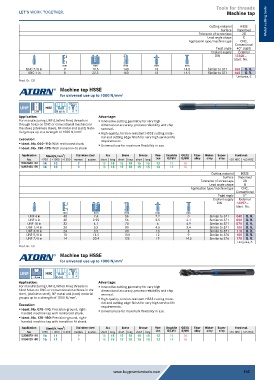

Page 185 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Cutting material HSSE Metal cutting tools
Surface Vaporised
Tolerance of screw taps 2B
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 40° (right)
Coolant supply External
DIN 13348...
Ident. No.
mm mm mm mm mm
UNC 7/8 in 9 19.5 140 18 14.5 Similar to 371 150 O. R.
UNC 1 in 8 22.5 160 18 14.5 Similar to 371 160 O. R.
Unit price, €
Prod. Gr. 131
Machine tap HSSE
for universal use up to 1000 N/mm 2

CNC/conv.
UNF HSSE
3xd B (3,5-5)
Application: Advantage:
For manufacturing UNF (Unified Fine) threads in ƒ Innovative cutting geometry for very high
through holes on CNC or conventional machines in dimensional accuracy, process reliability and chip
the steel, (stainless steel), NF metal and (cast) mate- removal.
rial groups up to a strength of 1000 N/mm . 2 ƒ High-quality, torsion-resistant HSSE cutting mate-
Execution: rial and cutting edge finish for very high service life
requirements.
ƒ Ident. No. 040–110: With reinforced shank ƒ Universal use for maximum flexibility in use.
ƒ Ident. No. 150–170: With transition-fit shank
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13357040-110 14 10 8 18 18 15 18 15 15 13 14 16
13357150-170 14 10 8 18 18 15 18 15 15 13 14 16
Cutting material HSSE
Surface Vaporised
Tolerance of screw taps 2B
Lead angle shape B
Application type/machine type CNC,
Conventional
Twist angle 0°
Coolant supply External
DIN 13357...
Ident. No.
mm mm mm mm mm
UNF 4 in 48 2.4 56 2.2 0 Similar to 371 040 O. R.
UNF 6 in 40 2.95 56 2.5 2.1 Similar to 371 050 O. R.
UNF 10 in 32 4.1 70 6 4.9 Similar to 371 070 O. R.
UNF 1/4 in 28 5.5 80 4.5 3.4 Similar to 371 100 O. R.
UNF 3/8 in 24 8.5 90 10 8 Similar to 371 110 O. R.
UNF 5/8 in 18 14.5 100 12 9 Similar to 376 150 O. R.
UNF 7/8 in 14 20.4 125 19 14.5 Similar to 376 170 O. R.
Unit price, €
Prod. Gr. 131
Machine tap HSSE
for universal use up to 1000 N/mm 2

CNC/conv.
UNF HSSE
2,5xd C (2-3)
Application: Advantage:
For manufacturing UNF (Unified Fine) threads in ƒ Innovative cutting geometry for very high
blind holes on CNC or conventional machines in the dimensional accuracy, process reliability and chip
steel, (stainless steel), NF metal and (cast) material removal.
groups up to a strength of 1000 N/mm . 2 ƒ High-quality, torsion-resistant HSSE cutting mate-
Execution: rial and cutting edge finish for very high service life
requirements.
ƒ Ident. No. 070–110: Precision-ground, right- ƒ Universal use for maximum flexibility in use.
handed machine tap with reinforced shank.
ƒ Ident. No. 120–180: Precision-ground, right-
handed machine tap with transition-fit shank.
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13358070-110 16 11 9 18 18 15 18 15 15 13 14 16
13358120-180 16 11 9 18 18 15 18 15 15 13 14 16

www.buypremiumtools.com 185
