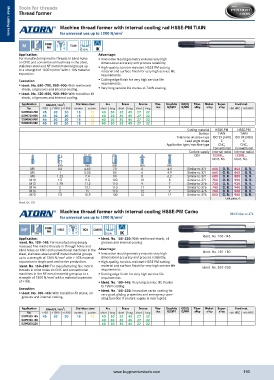

Page 190 - Buy Premium Tools ATORN Catalogue

Tools for threads
Thread former

Machine thread former with internal cooling rad HSSE-PM TiAlN
for universal use up to 1300 N/mm 2
Metal cutting tools
Metal cutting tools
CNC/conv.
M HSSE- TiAlN
3xd PM C (2-3) IK
Application: Advantage:
For manufacturing metric threads in blind holes ƒ Innovative mould geometry ensures very high
on CNC and conventional machines in the steel, dimensional accuracy and process reliability.
stainless steel and NF metal material groups up ƒ High-quality, torsion-resistant HSSE PM cutting
to a strength of 1300 N/mm with > 10% material material and surface finish for very high service life
2
expansion. requirements.
Execution: ƒ Cutting edge finish for very high service life
ƒ Ident. No. 650–700, 850–900: With reinforced requirements.
shank, oil grooves and internal cooling. ƒ Very long service life thanks to TiAlN coating.
ƒ Ident. No. 720–800, 920–980: With transition-fit
shank, oil grooves and internal cooling.
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13398650-700 45 30 20 18 12 40 50 35 45 27 32
13398720-800 45 30 20 18 12 40 50 35 45 27 32
13398850-900 45 30 20 18 12 40 50 35 45 27 32
13398920-980 45 30 20 18 12 40 50 35 45 27 32
Cutting material HSSE-PM HSSE-PM
Surface TiAlN TiAlN
Tolerance of screw taps ISO 2X (6HX) ISO 3X (6GX)
Lead angle shape C C
Application type/machine type CNC, CNC,
Conventional Conventional
Coolant supply Internal radial Internal radial
DIN 13398... 13398...
Ident. No. Ident. No.
mm mm mm mm mm
M5 0.8 4.65 70 6 4.9 Similar to 371 650 O. R. 850 O. R.
M6 1 5.55 80 6 4.9 Similar to 371 660 O. R. 860 O. R.
M8 1.25 7.4 90 8 6.2 Similar to 371 680 O. R. 880 O. R.
M10 1.5 9.3 100 10 8 Similar to 371 700 O. R. 900 O. R.
M12 1.75 11.2 110 9 7 Similar to 376 720 O. R. 920 O. R.
M14 2 13.1 110 11 9 Similar to 376 740 O. R. 940 O. R.
M16 2 15 110 12 9 Similar to 376 760 O. R. 960 O. R.
M20 2.5 18.9 140 16 12 Similar to 376 800 O. R. 980 O. R.
Unit price, €
Prod. Gr. 131
Machine thread former with internal cooling HSSE-PM Carbo
for universal use up to 1300 N/mm 2 DIN Similar to 374

CNC/conv.
MF HSSE- HSSE TiCN CARBO
3xd PM C (2-3) IK
Application: ƒ Ident. No. 150–230: With reinforced shank, oil Ident. No. 100–145
Ident. No. 100–145: For manufacturing deeply grooves and internal cooling.
recessed fine metric threads in through holes and
blind holes on CNC and conventional machines in the Advantage: Ident. No. 150–180
steel, stainless steel and NF metal material groups ƒ Innovative mould geometry ensures very high
up to a strength of 1300 N/mm with > 10% material dimensional accuracy and process reliability.
2
expansion in single part and series production. ƒ High-quality, torsion-resistant HSSE PM cutting
Ident. No. 150–230: For manufacturing fine metric material and surface finish for very high service life Ident. No. 200–230
threads in blind holes on CNC and conventional requirements.
machines in the NF metal material group up to a ƒ Cutting edge finish for very high service life
strength of 1300 N/mm with a material expansion requirements.
2
of >10%. ƒ Ident. No. 100–145: Very long service life thanks
to TiAlN coating.
Execution: ƒ Ident. No. 150–230: Innovative carbo coating for
ƒ Ident. No. 100–145: With transition-fit shank, oil very good gliding properties and emergency oper-
grooves and internal cooling. ating function if coolant supply is interrupted.
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13399100-145 45 30 20 18 12 40 50 35 45 27 32
13399150-180 40 50 35 45 27 32
13399200-230 40 50 35 45 27 32
