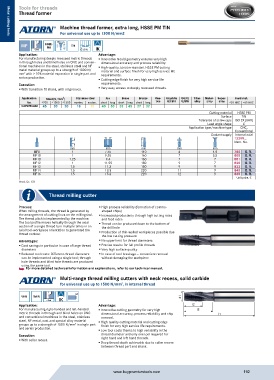

Tools for threads
Thread former
Machine thread former, extra long, HSSE PM TiN
For universal use up to 1300 N/mm2
Metal cutting tools
Metal cutting tools
CNC/conv.
MF HSSE- TiN
3xd PM C (2-3) IK
Application: Advantage:
For manufacturing deeply recessed metric threads Innovative mould geometry ensures very high
in through holes and blind holes on CNC and conven- dimensional accuracy and process reliability.
tional machines in the steel, stainless steel and NF High-quality, torsion-resistant HSSE PM cutting
metal material groups up to a strength of 1300 N/ material and surface finish for very high service life
mm with > 10% material expansion in single part and requirements.
2
series production.
Cutting edge finish for very high service life
Execution: requirements.
With transition-fit shank, with oil grooves. Very easy access to deeply recessed threads.
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13399780-860 45 30 20 18 12 40 50 35 45 27 32
Cutting material HSSE-PM
Surface TiN
Tolerance of screw taps ISO 2X (6HX)
Lead angle shape C
Application type/machine type CNC,
Conventional
Coolant supply Internal axial
13399...
Ident. No.
mm mm mm mm mm
MF8 1 7.55 140 6 4.9 780 O. R.
MF10 1 9.55 160 7 5.5 800 O. R.
MF10 1.25 9.4 160 7 7 801 O. R.
MF12 1 11.55 180 9 7 820 O. R.
MF12 1.5 11.3 180 9 9 822 O. R.
MF14 1.5 13.3 220 11 9 840 O. R.
MF16 1.5 15.3 220 12 9 860 O. R.
Unit price, €
Prod. Gr. 131
Thread milling cutter
Process: High process reliability (formation of comma-
When milling threads, the thread is generated by shaped chips)
the arrangement of cutting lines on the milling tool. Increased productivity through high cutting rates
The thread pitch is implemented by the machine. and feed rates
The tool profile moves helically through the axial Thread can be produced down to the bottom of
section of a single thread turn multiple times in an the drill hole
axial tool-workpiece orientation to generated the Production of thin-walled workpieces possible due
thread contour. the low cutting pressure
Advantages: No upper limit for thread diameters
Cost savings in particular in case of large thread Precise results for full profile threads
diameters Very high surface quality
Reduced tool costs: Different thread diameters In case of tool breakage — convenient removal
can be implemented using a single tool; through without damaging the workpiece
hole threads and blind hole threads are produced
using the same tool.
h For more detailed technical information and explanations, refer to our technical manual.
Multi-range thread milling cutters with neck recess, solid carbide
for universal use up to 1500 N/mm , in internal thread
2
HA
VHM TiAlN d1
2xd IK
Application: Advantage: l2
For manufacturing right-handed and left-handed Innovative cutting geometry for very high l3
metric threads in through and blind holes on CNC dimensional accuracy, process reliability and chip l1
and conventional machines in the steel, stainless removal.
steel, NF metal, cast and special alloy material High-quality cutting material and cutting edge
groups up to a strength of 1500 N/mm in single part finish for very high service life requirements.
2
and series production.
Low tool costs thanks to high variability in the
Execution: thread diameter and only one tool required for
With collar recess. right-hand and left-hand threads.
Deep thread depth achievable due to collar recess
between thread part and shank.
