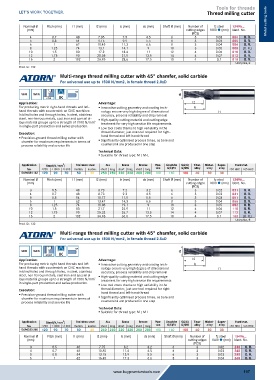

Page 197 - Buy Premium Tools ATORN Catalogue

Tools for threads
Thread milling cutter

Nominal Ø Pitch (mm) l1 (mm) l2 (mm) ls (mm) ds (mm) Shaft Ø (mm) Number of fz steel 13496... Metal cutting tools
(mm) cutting edges 1000 ˜ (mm) Ident. No.
(PCS)
4 0.7 48 7.35 7.9 4.5 6 3 0.03 004 O. R.
5 0.8 54 9.15 9.9 5.5 6 3 0.03 005 O. R.
6 1 62 10.45 11.3 6.6 8 3 0.04 006 O. R.
8 1.25 74 13.1 14.1 9 10 3 0.05 008 (O. R.)
10 1.5 80 17.2 18.4 11 12 4 0.06 010 O. R.
12 1.75 90 20.05 21.5 13.5 14 4 0.07 012 O. R.
16 2 102 26.95 28.6 17.5 18 4 0.1 016 O. R.
Unit price, €
Prod. Gr. 132
Multi-range thread milling cutter with 45° chamfer, solid carbide
For universal use up to 1500 N/mm2, in female thread 2.0xD

HA
VHM TiAlN ds
2xd IK
Application: Advantage: l2
For producing metric right-hand threads and left- ƒ Innovative cutting geometry and coating tech- ls
hand threads with countersink on CNC machines nology ensure very high degree of dimensional l1
in blind holes and through holes, in steel, stainless accuracy, process reliability and chip removal
steel, non-ferrous metals, cast iron and special al- ƒ High-quality cutting material and cutting edge
loys material groups up to a strength of 1500 N/mm 2 treatment for very high service life requirements
in single-part production and series production. ƒ Low tool costs thanks to high variability in the
Execution: thread diameter, just one tool required for right-
ƒ Precision-ground thread milling cutter with hand thread and left-hand thread
chamfer for maximum requirements in terms of ƒ Significantly optimised process times, as bore and
process reliability and service life countersink are produced in one step
Technical Data:
ƒ Suitable for thread type: M | M-L
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13496031-162 120 90 70 50 40 250 250 220 220 200 200 180 160 100 40 30 30
Nominal Ø Pitch (mm) l1 (mm) l2 (mm) ls (mm) ds (mm) Shaft Ø (mm) Number of fz steel 13496...
(mm) cutting edges 1000 ˜ (mm) Ident. No.
(PCS)
3 0.5 48 6.73 7.2 3.2 6 3 0.02 031 O. R.
4 0.7 48 8.73 9.3 4.5 6 3 0.03 041 O. R.
5 0.8 54 10.77 11.5 5.5 6 3 0.03 051 O. R.
6 1 62 13.47 14.3 6.6 8 3 0.04 066 O. R.
8 1.25 74 18.08 19.1 9 10 3 0.05 082 O. R.
10 1.5 80 21.7 22.9 11 12 4 0.06 110 O. R.
12 1.75 90 25.32 26.7 13.5 14 4 0.07 112 O. R.
16 2 102 34.93 36.6 17.5 18 4 0.1 162 (O. R.)
Unit price, €
Prod. Gr. 132
Multi-range thread milling cutter with 45° chamfer, solid carbide
For universal use up to 1500 N/mm2, in female thread 2.5xD

HA
VHM TiAlN ds
2,5xd IK
Application: Advantage: l2
For producing metric right-hand threads and left- ƒ Innovative cutting geometry and coating tech- ls
hand threads with countersink on CNC machines nology ensure very high degree of dimensional l1
in blind holes and through holes, in steel, stainless accuracy, process reliability and chip removal
steel, non-ferrous metals, cast iron and special al- ƒ High-quality cutting material and cutting edge
loys material groups up to a strength of 1500 N/mm 2 treatment for very high service life requirements
in single-part production and series production.
ƒ Low tool costs thanks to high variability in the
Execution: thread diameter, just one tool required for right-
ƒ Precision-ground thread milling cutter with hand thread and left-hand thread
chamfer for maximum requirements in terms of ƒ Significantly optimised process times, as bore and
process reliability and service life countersink are produced in one step
Technical Data:
ƒ Suitable for thread type: M | M-L
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13496230-360 120 90 70 50 40 250 250 220 220 200 200 180 160 100 40 30 30
Nominal Ø Pitch (mm) l1 (mm) l2 (mm) ls (mm) ds (mm) Shaft Ø (mm) Number of fz steel 13496...
(mm) cutting edges 1000 ˜ (mm) Ident. No.
(PCS)
3 0.5 48 7.75 8.2 3.2 6 3 0.02 230 O. R.
4 0.7 48 10.85 11.4 4.5 6 3 0.03 240 O. R.
5 0.8 54 13.15 13.9 5.5 6 3 0.03 250 O. R.
6 1 62 16.45 17.3 6.6 8 3 0.04 260 O. R.
