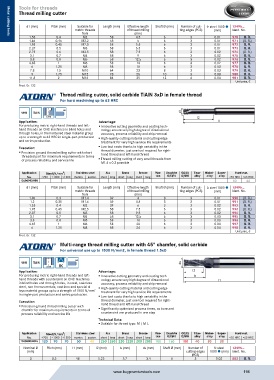

Tools for threads
Thread milling cutter

d1 (mm) Pitch (mm) Suitable for Length (mm) Effective length Shaft Ø (mm) Number of cut- fz steel 1000 ˜ 13496...
metric threads of thread milling ting edges (PCS) (mm) Ident. No.
from (mm)
1.53 0.4 M2 58 4.5 6 3 0.01 970 O. R.
Metal cutting tools
Metal cutting tools
1.65 0.45 M2.2 58 5 6 3 0.01 971 (O. R.)
1.95 0.45 M2.5 58 5.5 6 3 0.01 972 O. R.
2.37 0.5 M3 58 6.5 6 3 0.01 973 O. R.
2.75 0.6 M3.5 58 7.5 6 3 0.02 974 (O. R.)
3.1 0.7 M4 58 9 6 3 0.02 975 O. R.
3.8 0.8 M5 58 12.5 6 3 0.02 976 O. R.
4.65 1 M6 58 14 6 3 0.02 977 O. R.
6 1.25 M8 58 18 6 3 0.03 978 O. R.
7.8 1.5 M10 64 23 8 3 0.03 979 O. R.
9 1.75 M12 73 26 10 3 0.03 980 O. R.
11.8 2 M16 84 35 12 4 0.04 981 O. R.
Unit price, €
Prod. Gr. 132
Thread milling cutter, solid carbide TiAlN 3xD in female thread
For hard machining up to 63 HRC
HA
VHM TiAlN d1
3xd l2
Application: Advantage: l1
For producing metric right-hand threads and left- ƒ Innovative cutting geometry and coating tech-
hand threads on CNC machines in blind holes and nology ensure very high degree of dimensional
through holes, in the hardened steel material group accuracy, process reliability and chip removal
up to a strength to 63 HRC in single-part production ƒ High-quality cutting material and cutting edge
and series production. treatment for very high service life requirements
Execution: ƒ Low tool costs thanks to high variability in the
ƒ Precision-ground thread milling cutter with short thread diameter, just one tool required for right-
hand thread and left-hand thread
threaded part for maximum requirements in terms
of process reliability and service life ƒ Thread milling cutting of very small threads from
M1.4 x 0.3 possible
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13496990-998 50 40
d1 (mm) Pitch (mm) Suitable for Length (mm) Effective length Shaft Ø (mm) Number of cut- fz steel 1000 ˜ 13496...
metric threads of thread milling ting edges (PCS) (mm) Ident. No.
from (mm)
1.05 0.3 M1.4 39 4 3 3 0.01 990 (O. R.)
1.2 0.35 M1.6 39 4.8 3 3 0.01 991 (O. R.)
1.53 0.4 M2 39 6 3 3 0.02 992 O. R.
1.95 0.45 M2.5 58 7.5 6 3 0.02 993 (O. R.)
2.37 0.5 M3 58 9.5 6 3 0.02 994 O. R.
3.1 0.7 M4 58 12.5 6 3 0.03 995 O. R.
3.8 0.8 M5 58 16 6 3 0.03 996 O. R.
4.65 1 M6 58 20 6 3 0.04 997 O. R.
6 1.25 M8 58 24 6 3 0.04 998 O. R.
Unit price, €
Prod. Gr. 132
Multi-range thread milling cutter with 45° chamfer, solid carbide
For universal use up to 1500 N/mm2, in female thread 1.5xD

HA
VHM TiAlN ds
3xd IK
Application: Advantage: l2
For producing metric right-hand threads and left- ƒ Innovative cutting geometry and coating tech- ls
hand threads with countersink on CNC machines nology ensure very high degree of dimensional l1
in blind holes and through holes, in steel, stainless accuracy, process reliability and chip removal
steel, non-ferrous metals, cast iron and special al- ƒ High-quality cutting material and cutting edge
loys material groups up to a strength of 1500 N/mm 2 treatment for very high service life requirements
in single-part production and series production.
ƒ Low tool costs thanks to high variability in the
Execution: thread diameter, just one tool required for right-
ƒ Precision-ground thread milling cutter with hand thread and left-hand thread
chamfer for maximum requirements in terms of ƒ Significantly optimised process times, as bore and
process reliability and service life countersink are produced in one step
Technical Data:
ƒ Suitable for thread type: M | M-L
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13496003-016 120 90 70 50 40 250 250 220 220 200 200 180 160 100 40 30 30
Nominal Ø Pitch (mm) l1 (mm) l2 (mm) ls (mm) ds (mm) Shaft Ø (mm) Number of fz steel 13496...
(mm) cutting edges 1000 ˜ (mm) Ident. No.
(PCS)
3 0.5 48 5.25 5.7 3.4 6 3 0.02 003 O. R.
