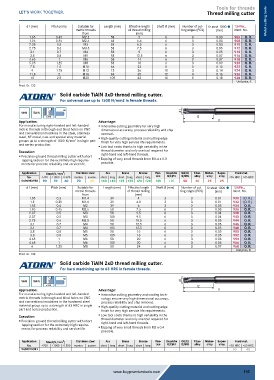

Page 195 - Buy Premium Tools ATORN Catalogue

Tools for threads
Thread milling cutter

d1 (mm) Pitch (mm) Suitable for Length (mm) Effective length Shaft Ø (mm) Number of cut- fz steel 1000 ˜ 13496... Metal cutting tools
metric threads of thread milling ting edges (PCS) (mm) Ident. No.
from (mm)
1.65 0.45 M2.2 58 5 6 3 0.03 906 O. R.
1.95 0.45 M2.5 58 5.5 6 3 0.03 908 O. R.
2.35 0.5 M3 58 6.5 6 3 0.03 910 O. R.
2.75 0.6 M3.5 58 7.5 6 3 0.05 912 O. R.
3.1 0.7 M4 58 9 6 3 0.05 914 O. R.
3.8 0.8 M5 58 12.5 6 3 0.07 916 O. R.
4.65 1 M6 58 14 6 3 0.07 918 O. R.
5.95 1.25 M8 58 18 6 3 0.09 920 O. R.
7.8 1.5 M10 64 23 8 3 0.12 922 O. R.
9 1.75 M12 73 26 10 3 0.14 924 O. R.
11.8 2 M16 84 35 12 4 0.16 926 O. R.
15 2.5 M20 105 43 16 5 0.18 928 O. R.
Unit price, €
Prod. Gr. 132
Solid carbide TiAlN 3xD thread milling cutter.
For universal use up to 1500 N/mm2 in female threads.

HA d1
VHM TiAlN
3xd l2
Application: Advantage: l1
For manufacturing right-handed and left-handed ƒ Innovative cutting geometry for very high
metric threads in through and blind holes on CNC dimensional accuracy, process reliability and chip
and conventional machines in the steel, stainless removal.
steel, NF metal, cast and special alloy material ƒ High-quality cutting material and cutting edge
groups up to a strength of 1500 N/mm in single part finish for very high service life requirements.
2
and series production.
ƒ Low tool costs thanks to high variability in the
Execution: thread diameter and only one tool required for
ƒ Precision-ground thread milling cutter with short right-hand and left-hand threads.
tapping section for the extremely high require- ƒ Tapping of very small threads from M1.4 x 0.3
ments for process reliability and service life. possible.
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13496930-958 90 70 60 70 60 140 140 135 135 120 120 135 120 50 30 25 25
d1 (mm) Pitch (mm) Suitable for Length (mm) Effective length Shaft Ø (mm) Number of cut- fz steel 1000 ˜ 13496...
metric threads of thread milling ting edges (PCS) (mm) Ident. No.
from (mm)
1.05 0.3 M1.4 39 4 3 3 0.01 930 (O. R.)
1.2 0.35 M1.6 39 4.8 3 3 0.01 932 (O. R.)
1.53 0.4 M2 39 6 3 3 0.03 934 O. R.
1.95 0.45 M2.5 58 7.5 6 3 0.03 936 O. R.
2.37 0.5 M3 58 9.5 6 3 0.04 938 O. R.
2.37 0.5 M3 105 9.5 6 3 0.04 940 O. R.
2.75 0.6 M3.5 58 10.5 6 3 0.05 944 O. R.
3.1 0.7 M4 58 12.5 6 3 0.05 946 O. R.
3.1 0.7 M4 105 12.5 6 3 0.05 948 O. R.
3.8 0.8 M5 58 16 6 3 0.05 950 O. R.
3.8 0.8 M5 105 16 6 3 0.05 952 O. R.
4.65 1 M6 58 20 6 3 0.06 954 O. R.
4.65 1 M6 105 20 6 3 0.06 956 O. R.
6 1.25 M8 58 24 6 3 0.07 958 O. R.
Unit price, €
Prod. Gr. 132
Solid carbide TiAlN 2xD thread milling cutter.
For hard machining up to 63 HRC in female threads.

HA
VHM TiAlN d1
2xd l2
Application: Advantage: l1
For manufacturing right-handed and left-handed ƒ Innovative cutting geometry and coating tech-
metric threads in through and blind holes on CNC nology ensure very high dimensional accuracy,
and conventional machines in the hardened steel process reliability and chip removal.
material group up to a strength of 63 HRC in single ƒ High-quality cutting material and cutting edge
part and series production. finish for very high service life requirements.
Execution: ƒ Low tool costs thanks to high variability in the
ƒ Precision-ground thread milling cutter with short thread diameter and only one tool required for
right-hand and left-hand threads.
tapping section for the extremely high require-
ments for process reliability and service life. ƒ Tapping of very small threads from M2 x 0.4
possible.
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13496970-981 50 40
