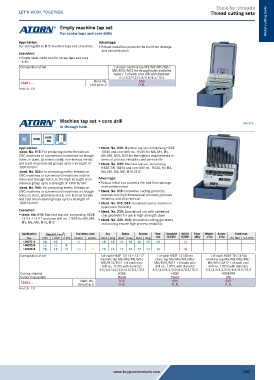

Page 202 - Buy Premium Tools ATORN Catalogue

Tools for threads
Thread cutting sets

Empty machine tap set Metal cutting tools
For screw taps and core drills
Application: Advantage:
For storing M3 to M12 machine taps and core drills. ƒ Robust metal box protects the tool from damage
and contamination
Execution:
ƒ Empty steel metal box for screw taps and core
drills
Composition of set 1 of each machine tap M3/M4/M5/M6/
M8/M10/M12 for through holes and blind
holes | 1 of each core drill with diameter
2.5/3.3/4.2/5.0/6.8/8.5/10.2
Ident. No.
050
13401... Unit price, € O. R.
Prod. Gr. 131

Machine tap set + core drill DIN 376
in through hole

M HSSE HSSE-
PM
3xd
Application: ƒ Ident. No. 035: Machine tap set, comprising HSSE
Ident. No. 015: For producing metric threads on 13130 and core drill no. 11029 for M3, M4, M5,
CNC machines or conventional machines in through M6, M8, M10, M12 for the highest requirements in
holes, in steel, (stainless steel), non-ferrous metals terms of process reliability and service life
and (cast iron) material groups up to a strength of ƒ Ident. No. 045: Machine tap set, comprising
1000 N/mm . 2 HSSE-TiN 13246 and core drill no. 11020, for M3,
Ident. No. 035: For producing metric threads on M4, M5, M6, M8, M10, M12
CNC machines or conventional machines in blind
holes and through holes, in the high-strength steel Advantage:
material group up to a strength of 1300 N/mm . 2 ƒ Robust metal box protects the tool from damage
Ident. No. 045: For producing metric threads on and contamination
CNC machines or conventional machines in through ƒ Ident. No. 015: Innovative cutting geometry
holes, in steel, (stainless steel), non-ferrous metals ensures very high dimensional accuracy, process
and cast iron material groups up to a strength of reliability and chip removal
1300 N/mm . 2 ƒ Ident. No. 015, 045: Universal use for maximum
application flexibility
Execution: ƒ Ident. No. 035: Specialised use with optimised
ƒ Ident. No. 015: Machine tap set, comprising HSSE chip geometry for use in high-strength steel
13113 + 13117 and core drill no. 11020 for M3, M4, ƒ Ident. No. 035–045: Innovative cutting geometry
M5, M6, M8, M10, M12 and coating ensure high process reliability
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13402015 14 10 8 18 18 15 18 15 15 13 16
13402035 15 10 9
13402045 18 13 10 10 10 19 19 17 19 17 17 15 18
Composition of set 1 of each HSSE 13113 + 13117 1 of each HSSE 13130 ma- 1 of each HSSE-TiN 13246
machine tap M3/M4/M5/M6/ chine tap M3/M4/M5/M6/ machine tap M3/M4/M5/M6/
M8/M10/M12 1 of each core M8/M10/M12 1 of each core M8/M10/M12 1 of each core
drill no. 11020 with diameter drill no. 11029 with diameter drill no. 11020 with diameter
2.5/3.3/4.2/5.0/6.8/8.5/10.2 2.5/3.3/4.2/5.0/6.8/8.5/10.2 2.5/3.3/4.2/5.0/6.8/8.5/10.2
Cutting material HSSE HSSE HSSE-PM
Colour ring system Steels Steels UNI
035
045
Ident. No.
015
13402... Set price, € O. R. O. R. O. R.
Prod. Gr. 131
