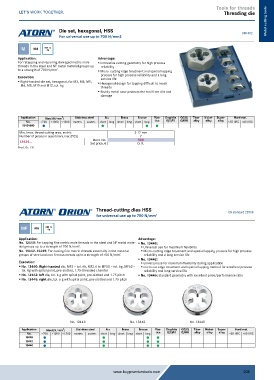

Page 206 - Buy Premium Tools ATORN Catalogue

Tools for threads
Threading die

Die set, hexagonal, HSS DIN 382 Metal cutting tools
For universal use up to 700 N/mm2

M HSS DIN 13
6g
Application: Advantage:
For retapping and repairing damaged metric male ƒ Innovative cutting geometry for high process
threads in the steel and NF metal material groups up reliability
to a strength of 700 N/mm . 2 ƒ Micro-cutting edge treatment and special lapping
Execution: process for high process reliability and a long
service life
ƒ Right-handed die set, hexagonal, for M3, M4, M5, ƒ Hexagonal design for tapping difficult to reach
M6, M8, M10 and M12, tol. 6g threads
ƒ Sturdy metal case protects the tool from dirt and
damage

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13434500 ˜ ˜ ˜ ˜
Min./max. thread-cutting area, metric 3-12 mm
Number of pieces in assortment/set (PCS) 7
500
Ident. No.
13434... Set price, € O. R.
Prod. Gr. 131

Thread-cutting dies HSS EN standard 22568
for universal use up to 700 N/mm 2

MF HSS DIN 13
6g
Application: Advantage:
No. 13440: For tapping fine metric male threads in the steel and NF metal mate- ƒ No. 13440:
rial groups up to a strength of 700 N/mm . 2 ƒ Universal use for maximum flexibility
No. 13442–13445: For cutting fine metric threads externally in the material ƒ Micro-cutting edge treatment and special lapping process for high process
groups of steel and non-ferrous metals up to a strength of 700 N/mm . 2 reliability and a long service life
ƒ No. 13442:
Execution: ƒ universal use for maximum flexibility during application
ƒ No. 13440: Right-handed die, MF2 = tol. 6h, MF2.6 to MF50 = tol. 6g, MF63 = ƒ micro cut edge treatment and special lapping method for excellent process
tol. 8g with spiral point, pre-slotted, 1.75-threaded chamfer reliability and long service life
ƒ No. 13442: left die, tol. 6 g with spiral point, pre-slotted and 1.75 pitch ƒ No. 13445: standard geometry with excellent price/performance ratio
ƒ No. 13445: right die, tol. 6 g with spiral point, pre-slotted and 1.75 pitch

No. 13440 No. 13442 No. 13445
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13440 ˜ ˜ ˜ ˜
13442 ˜ ˜ ˜ ˜
13445 ˜ ˜ ˜ ˜
