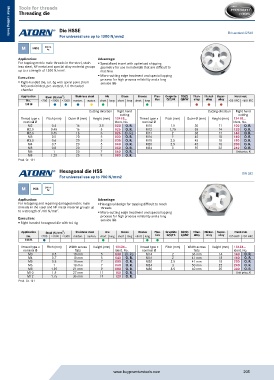

Tools for threads
Threading die

Die HSSE
For universal use up to 1300 N/mm2 EN standard 22568
Metal cutting tools
Metal cutting tools
M HSSE DIN 13
6g
Application: Advantage:
For tapping metric male threads in the steel, stain- ƒ Specialised insert with optimised chipping
less steel, NF metal and special alloy material groups geometry for use in materials that are difficult to
up to a strength of 1300 N/mm . 2 machine
Execution: ƒ Micro-cutting edge treatment and special lapping
process for high process reliability and a long
ƒ Right-handed die, tol. 6g with spiral point (from service life
M2) and nitrided, pre-slotted, 2.0-threaded
chamfer
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13418 ˜ ˜ ˜ ˜ ˜ ˜ ˜ ˜ ˜
Cutting direction Right-hand Cutting direction Right-hand
cutting cutting
Thread type x Pitch (mm) Outer Ø (mm) Height (mm) 13418... Thread type x Pitch (mm) Outer Ø (mm) Height (mm) 13418...
nominal Ø Ident. No. nominal Ø Ident. No.
M2 0.4 16 3.5 020 O. R. M10 1.5 30 11 100 O. R.
M2.5 0.45 16 5 025 O. R. M12 1.75 38 14 120 O. R.
M2.6 0.45 16 5 026 (O. R.) M14 2 38 14 140 O. R.
M3 0.5 20 5 030 O. R. M16 2 45 18 160 O. R.
M3.5 0.6 20 5 035 O. R. M18 2.5 45 18 180 O. R.
M4 0.7 20 5 040 O. R. M20 2.5 45 18 200 O. R.
M5 0.8 20 7 050 O. R. M24 3 55 22 240 O. R.
M6 1 20 7 060 O. R. Unit price, €
M8 1.25 25 9 080 O. R.
Prod. Gr. 131
Hexagonal die HSS DIN 382
For universal use up to 700 N/mm2

M HSS DIN 13
6g
Application: Advantage:
For retapping and repairing damaged metric male ƒ Hexagonal design for tapping difficult to reach
threads in the steel and NF metal material groups up threads
to a strength of 700 N/mm . 2 ƒ Micro-cutting edge treatment and special lapping
Execution: process for high process reliability and a long
service life
ƒ Right-handed hexagonal die with tol. 6g
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13434 ˜ ˜ ˜ ˜
Thread type x Pitch (mm) Width across Height (mm) 13434... Thread type x Pitch (mm) Width across Height (mm) 13434...
nominal Ø flats Ident. No. nominal Ø flats Ident. No.
M3 0.5 18 mm 5 030 (O. R.) M14 2 36 mm 14 140 O. R.
M4 0.7 18 mm 5 040 O. R. M16 2 41 mm 18 160 O. R.
M5 0.8 18 mm 7 050 O. R. M20 2.5 41 mm 18 200 O. R.
M6 1 18 mm 7 060 O. R. M24 3 50 mm 22 240 O. R.
M8 1.25 21 mm 9 080 O. R. M30 3.5 60 mm 25 300 O. R.
M10 1.5 27 mm 11 100 O. R. Unit price, €
M12 1.75 36 mm 14 120 O. R.
Prod. Gr. 131
