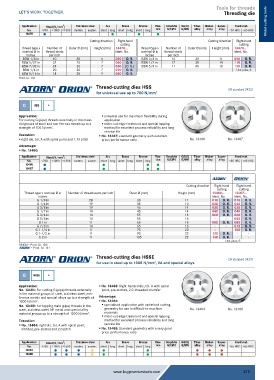

Page 210 - Buy Premium Tools ATORN Catalogue

Tools for threads
Threading die

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat. Metal cutting tools
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13470 ˜ ˜ ˜ ˜
Cutting direction Right-hand Cutting direction Right-hand
cutting cutting
Thread type x Number of Outer Ø (mm) Height (mm) 13470... Thread type x Number of Outer Ø (mm) Height (mm) 13470...
nominal Ø in thread starts Ident. No. nominal Ø in thread starts Ident. No.
inches per inch inches per inch
BSW 1/8 in 40 20 5 030 O. R. BSW 3/8 in 16 30 11 090 O. R.
BSW 5/32 in 32 20 7 040 O. R. BSW 1/2 in 12 38 14 110 O. R.
BSW 7/32 in 24 20 7 060 (O. R.) BSW 5/8 in 11 45 18 130 O. R.
BSW 1/4 in 20 20 7 070 O. R. Unit price, €
BSW 5/16 in 18 25 9 080 O. R.
Prod. Gr. 131
Thread-cutting dies HSS
for universal use up to 700 N/mm 2 EN standard 24231

G HSS A

Application: ƒ universal use for maximum flexibility during
For cutting G (pipe) threads externally in the mate- application
rial groups of steel and non-ferrous metals up to a ƒ micro cut edge treatment and special lapping
strength of 700 N/mm . 2 method for excellent process reliability and long
service life
Execution: ƒ No. 13487: standard geometry with excellent
ƒ right die. tol. A with spiral point and 1.75 pitch price/performance ratio No. 13480 No. 13487
Advantage:
ƒ No. 13480:
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13480 ˜ ˜ ˜ ˜
13487 ˜ ˜ ˜ ˜

Cutting direction Right-hand Right-hand
cutting cutting
Thread type x nominal Ø in Number of thread starts per inch Outer Ø (mm) Height (mm) 13480... 13487...
inches Ident. No. Ident. No.
G 1/8 in 28 30 11 010 O. R. 010 O. R.
G 1/4 in 19 38 10 020 O. R. 020 O. R.
G 3/8 in 19 45 14 030 O. R. 030 O. R.
G 1/2 in 14 45 14 040 O. R. 040 O. R.
G 3/4 in 14 55 16 060 O. R. 060 O. R.
G 5/8 in 14 55 16 - - 050 O. R.
G 1 in 11 65 18 080 O. R. 080 O. R.
G 7/8 in 14 65 18 - - 070 O. R.
G 1-1/4 in 11 75 20 - - 100 O. R.
G 1-1/2 in 11 90 22 120 O. R. - -
G 2 in 11 105 22 140 O. R. - -
Unit price, €
ORION = Prod. Gr. 1DC
a = Prod. Gr. 131
Thread-cutting dies HSSE
for use in steel up to 1300 N/mm , VA and special alloys EN standard 24231
2
G HSSE A

Application: ƒ No. 13488: Right-handed die, tol. A with spiral
No. 13484: For cutting G (pipe) threads externally point, pre-slotted, 2.0-threaded chamfer
in the material groups of steel, stainless steel, non-
ferrous metals and special alloys up to a strength of Advantage:
1300 N/mm . 2 ƒ No. 13484:
No. 13488: For tapping male (pipe) threads in the ƒ specialised application with optimised cutting
steel, stainless steel, NF metal and special alloy geometry for use in difficult-to-machine No. 13484 No. 13488
material groups up to a strength of 1300 N/mm . 2 materials
ƒ micro cut edge treatment and special lapping
Execution: method for excellent process reliability and long
ƒ No. 13484: right die. tol. A with spiral point, service life
nitrided, pre-slotted and 2.0 pitch ƒ No. 13488: Standard geometry with a very good
price-performance ratio

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13484 ˜ ˜ ˜ ˜ ˜ ˜ ˜ ˜ ˜
13488 ˜ ˜ ˜ ˜ ˜ ˜ ˜ ˜ ˜
