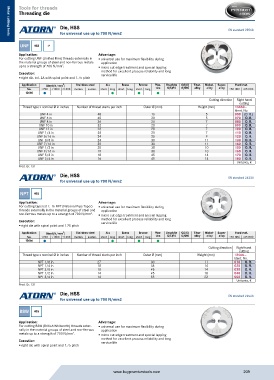

P. 209
Tools for threads
Threading die
Die, HSS EN standard 22568
for universal use up to 700 N/mm2
Metal cutting tools
Metal cutting tools
UNF HSS 2A
Application: Advantage:
For cutting UNF (Unified Fine) threads externally in universal use for maximum flexibility during
the material groups of steel and non-ferrous metals application
up to a strength of 700 N/mm . 2 micro cut edge treatment and special lapping
Execution: method for excellent process reliability and long
service life
right die. tol. 2A with spiral point and 1.75 pitch
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13460
Cutting direction Right-hand
cutting
Thread type x nominal Ø in inches Number of thread starts per inch Outer Ø (mm) Height (mm) 13460...
Ident. No.
UNF 4 in 48 16 5 050 (O. R.)
UNF 6 in 40 20 5 070 O. R.
UNF 8 in 36 20 7 080 O. R.
UNF 10 in 32 20 7 090 O. R.
UNF 12 in 28 20 7 100 O. R.
UNF 1/4 in 28 20 7 110 O. R.
UNF 5/16 in 24 25 9 120 O. R.
UNF 3/8 in 24 30 11 130 O. R.
UNF 7/16 in 20 30 11 140 O. R.
UNF 1/2 in 20 38 10 150 O. R.
UNF 9/16 in 18 38 10 160 O. R.
UNF 5/8 in 18 45 14 170 O. R.
UNF 3/4 in 16 45 14 180 O. R.
Unit price, €
Prod. Gr. 131
Die, HSS EN standard 24230
for universal use up to 700 N/mm2
NPT HSS
Application: Advantage:
For cutting tapered 1: 16 NPT (National Pipe Taper) universal use for maximum flexibility during
threads externally in the material groups of steel and application
non-ferrous metals up to a strength of 700 N/mm . 2 micro cut edge treatment and special lapping
Execution: method for excellent process reliability and long
service life
right die with spiral point and 1.75 pitch
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13466
Cutting direction Right-hand
cutting
Thread type x nominal Ø in inches Number of thread starts per inch Outer Ø (mm) Height (mm) 13466...
Ident. No.
NPT 1/8 in 27 30 11 010 O. R.
NPT 1/4 in 18 38 14 020 O. R.
NPT 3/8 in 18 45 14 030 O. R.
NPT 1/2 in 14 45 18 040 O. R.
NPT 3/4 in 14 55 22 050 O. R.
Unit price, €
Prod. Gr. 131
Die, HSS EN standard 22568
for universal use up to 700 N/mm2
BSW HSS
Application: Advantage:
For cutting BSW (British Whitworth) threads exter- universal use for maximum flexibility during
nally in the material groups of steel and non-ferrous application
metals up to a strength of 700 N/mm . 2 micro cut edge treatment and special lapping
Execution: method for excellent process reliability and long
service life
right die with spiral point and 1.75 pitch
