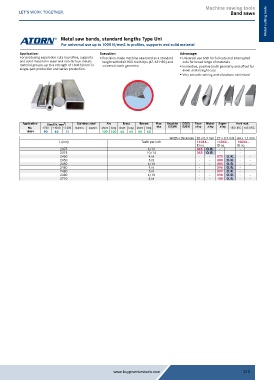

Page 213 - Buy Premium Tools ATORN Catalogue

Machine sawing tools
Metal cutting tools
Band saws

Metal saw bands, standard lengths Type Uni
For universal use up to 1000 N/mm2 in profiles, supports and solid material
Application: Execution: Advantage:
For producing separation cuts in profiles, supports ƒ Precision-made machine saw band as a standard ƒ Universal use both for full cuts and interrupted
and solid material in steel and non-ferrous metals length with M42 HSS tooth tips (67–69 HRC) and cuts for broad range of materials
material groups, up to a strength of 1300 N/mm in universal tooth geometry ƒ Innovative, positive tooth geometry and offset for
2
single-part production and series production. exact and straight cuts
ƒ Very smooth running and vibrations minimised

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
14044 80 40 25 100 100 65 65 40 40
Width x thickness 20 x 0.9 mm 27 x 0.9 mm 34 x 1.1 mm
L (mm) Teeth per inch 14044... 14044... 14044...
ID no. ID no. ID no.
2375 6/10 045 O. R. - - - -
2375 10/14 055 O. R. - - - -
2450 4/6 - - 075 O. R. - -
2450 5/8 - - 080 O. R. - -
2450 6/10 - - 085 O. R. - -
2480 4/6 - - 096 O. R. - -
2480 5/8 - - 097 O. R. - -
2480 6/10 - - 098 O. R. - -
2710 4/6 - - 100 O. R. - -
