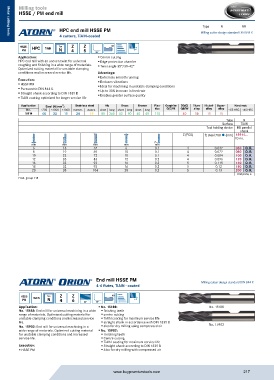

Page 217 - Buy Premium Tools ATORN Catalogue

Milling tools
HSSE / PM end mill

Type N NR
HPC end mill HSSE PM
4 cutters, TiAlN-coated Milling cutter design standard DIN 844 K
Metal cutting tools
Metal cutting tools
HSSE- HPC TiAlN Typ Z Z HB
PM N 4 5 45°
Application: ƒ Centre cutting
HPC end mill with an uneven twist for universal ƒ Edge protection chamfer
roughing and finishing in a wide range of materials. ƒ Twist angle 35°/30-42°
Optimized cutting material for unstable clamping
conditions and increased service life. Advantage:
ƒ Extremely smooth running
Execution: ƒ Reduces vibrations
ƒ HSSE PM ƒ Ideal for machining in unstable clamping conditions
ƒ Pursuant to DIN 844 K ƒ Up to 30% increase in feed rate
ƒ Straight shank according to DIN 1835 B ƒ Enables greater surface quality
ƒ TiAlN coating optimized for longer service life
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
15914 40 32 18 24 19 85 265 43 50 40 45 110 40 15 15 15
Type N
Surface TiAlN
Tool holding device HB parallel
shank
Z (PCS) fz steel 700 ˜ (mm) 15914...
ID no.
mm mm mm mm mm
6 13 57 6 0.1 4 0.047 060 O. R.
8 19 69 10 0.1 4 0.072 080 O. R.
10 22 72 10 0.1 4 0.084 100 O. R.
12 26 83 12 0.2 4 0.096 120 O. R.
16 32 92 16 0.2 5 0.115 160 O. R.
18 32 92 16 0.2 5 0.12 180 O. R.
20 38 104 20 0.2 5 0.13 200 O. R.
Unit price, €
Prod. group 118

End mill HSSE PM Milling cutter design standard DIN 844 K
4-6 flutes, TiAlN - coated

HSSE- Typ Z Z HB
PM TiAlN N 4 6 45°
Application: ƒ No. 15188: No. 15188
No. 15188: End mill for universal machining in a wide ƒ finishing teeth
range of materials. Optimised cutting material for ƒ centre cutting
unstable clamping conditions and increased service ƒ TiAIN coating for maximum service life
life. ƒ straight shank in accordance with DIN 1835 B No. 15902
No. 15902: End mill for universal machining in a ƒ also for dry milling using compressed air
wide range of materials. Optimized cutting material ƒ No. 15902:
for unstable clamping conditions and increased ƒ Finishing teeth
service life. ƒ Centre cutting
ƒ TiAIN-coating for maximum service life
Execution: ƒ Straight shank according to DIN 1835 B
ƒ HSSE PM ƒ Also for dry milling with compressed air
