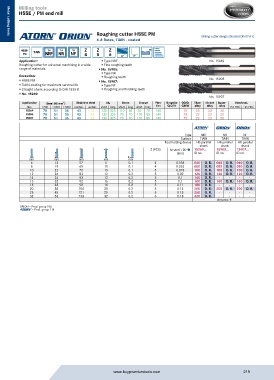

Page 219 - Buy Premium Tools ATORN Catalogue

Milling tools
HSSE / PM end mill

Roughing cutter HSSE PM
Metal cutting tools
Metal cutting tools
4-6 flutes, TiAlN - coated Milling cutter design standard DIN 844 K
HSSE- TiAlN Typ Typ Typ Z Z Z HB
PM NRF NR NF 4 5 6 45°
Application: ƒ Type NRF No. 15269
Roughing cutter for universal machining in a wide ƒ Fine roughing teeth
range of materials. ƒ No. 15905:
ƒ Type NR
Execution: ƒ Roughing teeth
ƒ HSSE PM ƒ No. 15907: No. 15905
ƒ TiAIN-coating for maximum service life ƒ Type NF
ƒ Straight shank according to DIN 1835 B ƒ Roughing and finishing teeth
ƒ No. 15269:
No. 15907
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
15269 78 51 35 43 37 130 325 110 85 70 70 140 75 23 23 20
15905 78 51 35 43 43 130 325 70 70 110 85 140 75 23 23 20
15907 78 51 35 43 43 130 325 70 70 110 85 140 75 23 23 20

Type NRF NR NF
Surface TiAlN TiAlN TiAlN
Tool holding device HB parallel HB parallel HB parallel
shank shank shank
Z (PCS) fz steel 700 ˜ 15269... 15905... 15907...
(mm) ID no. ID no. ID no.
mm mm mm mm mm
6 13 57 6 0.1 4 0.038 060 O. R. 060 O. R. 060 O. R.
8 19 69 10 0.1 4 0.052 080 O. R. 080 O. R. 080 O. R.
10 22 72 10 0.1 5 0.078 100 O. R. 100 O. R. 100 O. R.
12 26 83 12 0.2 5 0.09 120 O. R. 120 O. R. 120 O. R.
14 26 83 12 0.2 5 0.1 140 O. R. - - - -
16 32 92 16 0.2 5 0.1 160 O. R. 160 O. R. 160 O. R.
18 32 92 16 0.2 5 0.11 180 O. R. - - - -
20 38 104 20 0.2 5 0.12 200 O. R. 200 O. R. 200 O. R.
25 45 121 25 0.2 5 0.13 250 O. R. - - - -
32 53 133 32 0.2 6 0.18 320 O. R. - - - -
Unit price, €
ORION = Prod. group 106
a = Prod. group 118
