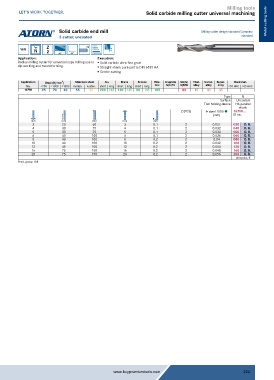

Page 224 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter universal machining

Solid carbide end mill Milling cutter design standard Company Metal cutting tools
2-cutter, uncoated standard

Typ Z HA
VHM
N 2 45°
Application: Execution:
Radius milling cutter for universal copy milling use in ƒ Solid carbide ultra-fine grain
dip working and mould forming. ƒ Straight shank pursuant to DIN 6535 HA
ƒ Centre cutting

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16750 95 70 60 55 50 200 245 130 145 90 105 105 80 45 40 35
Type N
Surface Uncoated
Tool holding device HA parallel
shank
Z (PCS) fz steel 1000 ˜ 16750...
(mm) ID no.
mm mm mm mm mm
3 20 60 3 0.1 2 0.021 030 O. R.
4 30 75 4 0.1 2 0.032 040 O. R.
5 30 75 5 0.1 2 0.034 050 O. R.
6 40 100 6 0.1 2 0.036 060 O. R.
8 40 100 8 0.2 2 0.04 080 O. R.
10 40 100 10 0.2 2 0.042 100 O. R.
12 45 100 12 0.2 2 0.044 120 O. R.
16 75 150 16 0.2 2 0.048 160 O. R.
20 75 150 20 0.2 2 0.056 200 O. R.
Unit price, €
Prod. group 108
