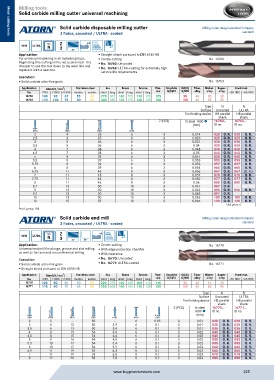

P. 225
Milling tools
Solid carbide milling cutter universal machining
Solid carbide disposable milling cutter Milling cutter design standard Company
3 flutes, uncoated / ULTRA - coated standard
Metal cutting tools
Metal cutting tools
Typ Z HB
VHM ULTRA N 3
Application: Straight shank pursuant to DIN 6535 HB
For universal machining in all material groups. Centre cutting No. 16760
Regrinding this cutting mill is not economical. It is No. 16760: Uncoated
cheaper to use the tool down to the wear line and No. 16763: ULTRA-coating for extremely high
replace it with a new one.
service life requirements
Execution:
Solid carbide ultra-fine grain No. 16763
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16760 100 90 67 55 45 270 315 130 155 110 120 125 90 40 30 30
16763 110 100 75 60 50 300 350 145 170 120 135 140 100 45 35 35
Type N N
Surface Uncoated ULTRA
Tool holding device HB parallel HB parallel
shank shank
Z (PCS) fz steel 1000 16760... 16763...
(mm) ID no. ID no.
mm mm mm mm
2 4 35 6 3 0.014 020 O. R. 020 O. R.
2.5 4 35 6 3 0.023 025 O. R. 025 O. R.
3 5 36 6 3 0.031 030 O. R. 030 O. R.
3.5 5 36 6 3 0.04 035 O. R. 035 O. R.
4 7 38 6 3 0.048 040 O. R. 040 O. R.
4.5 7 38 6 3 0.05 045 O. R. 045 O. R.
5 8 39 6 3 0.051 050 O. R. 050 O. R.
5.5 8 39 6 3 0.053 055 O. R. 055 O. R.
5.75 8 39 6 3 0.053 057 O. R. 057 O. R.
6 8 39 6 3 0.054 060 O. R. 060 O. R.
6.75 11 43 8 3 0.056 067 O. R. 067 (O. R.)
7 11 43 8 3 0.057 070 O. R. 070 O. R.
7.75 11 43 8 3 0.059 077 O. R. 077 O. R.
8 11 43 8 3 0.06 080 O. R. 080 O. R.
8.7 13 50 10 3 0.061 087 O. R. - -
9 13 50 10 3 0.062 090 O. R. 090 O. R.
9.7 13 50 10 3 0.063 097 O. R. - -
10 13 50 10 3 0.063 100 O. R. 100 O. R.
12 15 55 12 3 0.066 120 O. R. 120 O. R.
Unit price, €
Prod. group 108
Solid carbide end mill Milling cutter design standard Company
3 flutes, uncoated / ULTRA - coated standard
Typ Z HB
VHM ULTRA N 3 45°
Application: Centre cutting No. 16770
Universal end mill for plunge, groove and slot milling With edge protection chamfer
as well as for face and circumferential milling. With clearance
Execution: No. 16770: Uncoated
Solid carbide ultra-fine grain No. 16771: ULTRA-coated No. 16771
Straight shank pursuant to DIN 6535 HB
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16770 105 80 65 60 55 225 270 145 160 100 115 115 90 50 45 40
16771 115 90 75 65 60 250 300 160 180 110 130 130 100 55 50 45
Type N N
Surface Uncoated ULTRA
Tool holding device HB parallel HB parallel
shank shank
Z (PCS) fz steel 16770... 16771...
1000 ID no. ID no.
(mm)
mm mm mm mm mm mm mm
2 5 - 50 - 6 0.05 3 0.01 020 O. R. 020 O. R.
3 5 12 50 2.9 6 0.1 3 0.01 030 O. R. 030 O. R.
3.5 6 13 50 3.4 6 0.1 3 0.01 035 O. R. 035 O. R.
4 8 15 54 3.9 6 0.1 3 0.02 040 O. R. 040 O. R.
4.5 8 15 54 4.4 6 0.1 3 0.02 045 O. R. 045 O. R.
5 9 16 54 4.9 6 0.1 3 0.02 050 O. R. 050 O. R.
5.5 10 17 54 5.4 6 0.1 3 0.02 055 O. R. 055 O. R.
6 10 17 54 5.9 6 0.1 3 0.03 060 O. R. 060 O. R.
6.5 11 19 58 6.3 8 0.1 3 0.03 065 O. R. 065 O. R.
7 11 19 58 6.8 8 0.1 3 0.03 070 O. R. 070 O. R.
8 12 20 58 7.8 8 0.2 3 0.04 080 O. R. 080 O. R.
www.buypremiumtools.com 225
