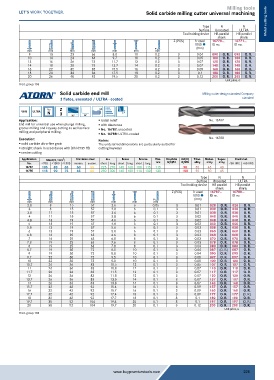

Page 226 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter universal machining

Type N N Metal cutting tools
Surface Uncoated ULTRA
Tool holding device HB parallel HB parallel
shank shank
Z (PCS) fz steel 16770... 16771...
1000 ˜ ID no. ID no.
(mm)
mm mm mm mm mm mm mm
9 13 23 66 8.8 10 0.2 3 0.04 090 O. R. 090 O. R.
10 14 24 66 9.7 10 0.2 3 0.05 100 O. R. 100 O. R.
12 16 26 73 11.7 12 0.2 3 0.07 120 O. R. 120 O. R.
14 18 28 75 13.7 14 0.2 3 0.07 140 O. R. 140 O. R.
16 22 32 82 15.5 16 0.2 3 0.09 160 O. R. 160 O. R.
18 24 34 84 17.5 18 0.2 3 0.1 180 O. R. 180 O. R.
20 26 40 92 19.5 20 0.2 3 0.12 200 O. R. 200 O. R.
Unit price, €
Prod. group 108
Solid carbide end mill Milling cutter design standard Company
3 flutes, uncoated / ULTRA - coated standard

Typ Z HB
VHM ULTRA N 3 45°
Application: ƒ radial relief No. 16787
End mill for universal use when plunge milling, ƒ with clearance
groove milling and keyway cutting as well as face ƒ No. 16787: uncoated
milling and peripheral milling. ƒ No. 16788: ULTRA-coated
Execution: Notes: No. 16788
ƒ solid carbide ultra-fine grain The undersized dimensions are particularly suited for
ƒ straight shank in accordance with DIN 6535 HB cutting keyways
ƒ centre cutting
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16787 105 80 65 60 55 225 270 145 160 100 115 115 90 50 45 40
16788 115 90 75 65 60 250 300 160 180 110 130 130 100 55 50 45
Type N N
Surface Uncoated ULTRA
Tool holding device HB parallel HB parallel
shank shank
Z (PCS) fz steel 16787... 16788...
1000 ˜ ID no. ID no.
(mm)
mm mm mm mm mm mm mm
2.8 8 15 57 2.6 6 0.05 3 0.01 028 O. R. 028 O. R.
3 8 15 57 2.8 6 0.1 3 0.01 030 O. R. 030 O. R.
3.8 11 15 57 3.6 6 0.1 3 0.01 038 O. R. 038 O. R.
4 11 15 57 3.8 6 0.1 3 0.02 040 O. R. 040 O. R.
4.8 13 19 57 4.6 6 0.1 3 0.02 048 O. R. 048 O. R.
5 13 19 57 4.8 6 0.1 3 0.02 050 O. R. 050 O. R.
5.8 13 19 57 5.6 6 0.1 3 0.03 058 O. R. 058 O. R.
6 13 19 57 5.8 6 0.1 3 0.03 060 O. R. 060 O. R.
6.8 16 25 63 6.6 8 0.1 3 0.03 068 O. R. 068 O. R.
7 16 25 63 6.8 8 0.1 3 0.03 070 O. R. 070 O. R.
7.8 19 25 63 7.6 8 0.1 3 0.03 078 O. R. 078 O. R.
8 19 25 63 7.8 8 0.1 3 0.04 080 O. R. 080 O. R.
8.7 19 30 72 8.5 10 0.1 3 0.04 087 (O. R.) 087 O. R.
9 19 30 72 8.8 10 0.1 3 0.04 090 O. R. 090 O. R.
9.7 22 30 72 9.5 10 0.1 3 0.05 097 O. R. 097 O. R.
10 22 30 72 9.8 10 0.1 3 0.05 100 O. R. 100 O. R.
10.7 26 36 83 10.5 12 0.1 3 0.05 107 O. R. 107 O. R.
11 26 36 83 10.8 12 0.1 3 0.07 110 O. R. 110 O. R.
11.7 26 36 83 11.5 12 0.1 3 0.07 117 O. R. 117 O. R.
12 26 36 83 11.8 12 0.1 3 0.07 120 O. R. 120 O. R.
13.7 26 36 83 13.5 14 0.1 3 0.07 137 O. R. 137 O. R.
14 26 36 83 13.8 14 0.1 3 0.07 140 O. R. 140 O. R.
15.7 32 42 92 15.4 16 0.1 3 0.09 157 O. R. 157 O. R.
16 32 42 92 15.7 16 0.1 3 0.09 160 O. R. 160 O. R.
17.7 32 42 92 17.4 18 0.1 3 0.09 177 O. R. 177 (O. R.)
18 32 42 92 17.7 18 0.1 3 0.1 180 O. R. 180 O. R.
19.7 38 52 104 19.4 20 0.1 3 0.1 197 O. R. 197 (O. R.)
20 38 52 104 19.7 20 0.1 3 0.12 200 O. R. 200 O. R.
Unit price, €
Prod. group 108

www.buypremiumtools.com 226
