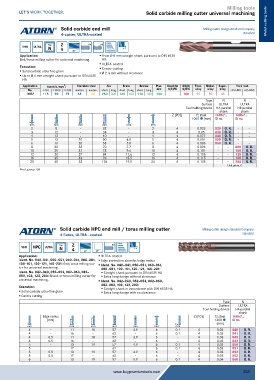

Page 231 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter universal machining

Solid carbide end mill Milling cutter design standard Company Metal cutting tools
4-cutter, ULTRA-coated standard

Typ Z HA HB
VHM ULTRA N 4
Application: ƒ From Ø 8 mm straight shank pursuant to DIN 6535
End/torus milling cutter for universal machining. HB
ƒ ULTRA-coated
Execution: ƒ Centre cutting
ƒ Solid carbide ultra-fine grain ƒ Ø 2-4 mm without clearance
ƒ Up to Ø 6 mm straight shank pursuant to DIN 6535
HA
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16857 115 90 75 65 60 250 300 160 180 110 130 130 100 55 50 45
Type N N
Surface ULTRA ULTRA
Tool holding device HA parallel HB parallel
shank shank
Z (PCS) fz steel 16857... 16857...
1000 ˜ (mm) ID no. ID no.
mm mm mm mm mm mm
2 8 - 32 - 2 4 0.023 020 O. R. - -
3 12 - 38 - 3 4 0.05 030 O. R. - -
4 12 - 40 - 4 4 0.077 040 O. R. - -
5 15 20 50 4.8 5 4 0.081 050 O. R. - -
6 16 20 58 5.8 6 4 0.086 060 O. R. - -
8 22 32 70 7.7 8 4 0.096 - - 080 O. R.
10 25 31 73 9.6 10 4 0.101 - - 100 O. R.
12 28 37 84 11.6 12 4 0.106 - - 120 O. R.
16 35 43 93 15.5 16 4 0.115 - - 160 O. R.
20 40 52 104 19.5 20 4 0.135 - - 200 O. R.
Unit price, €
Prod. group 108

Solid carbide HPC end mill / torus milling cutter Milling cutter design standard Company
4 flutes, ULTRA - coated standard

Z
VHM HPC ULTRA Typ 4 45° HA
N
Application: ƒ ULTRA-coated
Ident. No. 040–041, 050–051, 060–061, 080–081, ƒ Edge protection chamfer/edge radius
100–101, 120–121, 160–201: End/torus milling cut- ƒ Ident. No. 040–041, 050–051, 060–061,
ter for universal machining. 080–081, 100–101, 120–121, 160–201:
Ident. No. 042–043, 052–053, 062–063, 082– ƒ Straight shank pursuant to DIN 6535 HA
083, 103, 123, 203: Shank or torus milling cutter for ƒ Extra-long design without clearance
universal machining. ƒ Ident. No. 042–043, 052–053, 062–063,
Execution: 082–083, 103, 123, 203:
ƒ Straight shank in accordance with DIN 6535 HA
ƒ Solid carbide ultra-fine grain ƒ Extra-long design with no clearance
ƒ Centre cutting
Type N
Surface ULTRA
Tool holding device HA parallel
shank
Edge radius Z (PCS) fz steel 16862...
(mm) 1300 ˜ ID no.
(mm)
mm mm mm mm mm mm mm
4 - 11 18 57 3.9 6 0.1 4 0.03 040 O. R.
4 - 16 - 62 - 6 0.1 4 0.03 041 O. R.
4 0.5 11 18 57 3.9 6 - 4 0.03 042 O. R.
4 0.5 16 - 62 - 6 - 4 0.03 043 O. R.
5 - 13 19 57 4.9 6 0.1 4 0.03 050 O. R.
5 - 17 - 62 - 6 0.1 4 0.03 051 O. R.
5 0.5 13 19 57 4.9 6 - 4 0.03 052 O. R.
5 0.5 17 - 62 - 6 - 4 0.03 053 O. R.
6 - 13 19 57 5.9 6 0.1 4 0.04 060 O. R.
