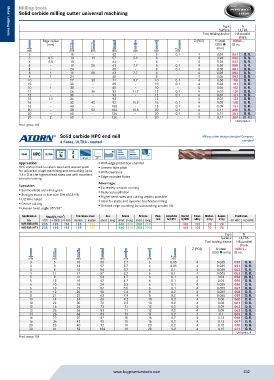

P. 232
Milling tools
Solid carbide milling cutter universal machining
Type N
Surface ULTRA
Tool holding device HA parallel
shank
Metal cutting tools
Metal cutting tools
Edge radius Z (PCS) fz steel 16862...
(mm) 1300 ID no.
(mm)
mm mm mm mm mm mm mm
6 - 18 - 62 - 6 0.1 4 0.04 061 O. R.
6 0.5 13 19 57 5.9 6 - 4 0.04 062 O. R.
6 0.5 18 - 62 - 6 - 4 0.04 063 O. R.
8 - 19 25 63 7.7 8 0.1 4 0.05 080 O. R.
8 - 24 - 68 - 8 0.1 4 0.05 081 O. R.
8 1 19 25 63 7.7 8 - 4 0.05 082 O. R.
8 1 24 - 68 - 8 - 4 0.05 083 O. R.
10 - 22 30 72 9.7 10 0.1 4 0.06 100 O. R.
10 - 30 - 80 - 10 0.1 4 0.06 101 O. R.
10 1 30 - 80 - 10 - 4 0.06 103 O. R.
12 - 26 36 83 11.7 12 0.1 4 0.07 120 O. R.
12 - 36 - 93 - 12 0.1 4 0.07 121 O. R.
12 1.5 36 - 93 - 12 - 4 0.07 123 O. R.
16 - 32 42 92 15.5 16 0.1 4 0.09 160 O. R.
16 - 48 - 108 - 16 0.1 4 0.09 161 O. R.
20 - 38 52 104 19.5 20 0.1 4 0.11 200 O. R.
20 - 60 - 126 - 20 0.1 4 0.11 201 O. R.
20 2 60 - 126 - 20 - 4 0.11 203 (O. R.)
Unit price, €
Prod. group 108
Solid carbide HPC end mill Milling cutter design standard Company
4 flutes, ULTRA - coated standard
Z
VHM HPC ULTRA Typ 4 HB
N
Application: 35°/38° 45° With edge protection chamfer
HPC end mill with uneven twist and uneven pitch Uneven flute pitch
for universal rough machining and smoothing up to With clearance
1.5 x D at the highest feed rates and with excellent
smooth running. Edge-rounded flutes
Advantage:
Execution: Extremely smooth running
Solid carbide ultra-fine grain Reduced oscillation
Straight shank in line with DIN 6535 HB Higher feed rates and cutting depths possible
ULTRA-coated Ideal for static and dynamic trochoidal milling
Centre cutting Defined edge rounding for outstanding service life
Uneven twist angle 35°/38°
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16851050-070 235 195 155 125 105 360 310 250 290 165 105 70 70
16851051-071 235 195 155 125 105 360 310 250 290 165 105 70 70
Type N
Surface ULTRA
Tool holding device HB parallel
shank
Z (PCS) fz steel 16851...
1000 (mm) ID no.
mm mm mm mm mm mm mm
3 5 10 50 2.7 6 0.05 4 0.035 050 O. R.
3 8 13 57 2.7 6 0.05 4 0.035 051 O. R.
4 8 14 54 3.7 6 0.1 4 0.045 052 O. R.
4 11 17 57 3.7 6 0.1 4 0.045 053 O. R.
5 9 16 54 4.7 6 0.1 4 0.04 054 (O. R.)
5 13 19 57 4.7 6 0.1 4 0.04 055 O. R.
6 10 16 54 5.5 6 0.1 4 0.055 056 O. R.
6 13 19 57 5.5 6 0.1 4 0.055 057 O. R.
8 12 20 58 7.4 8 0.2 4 0.065 058 O. R.
8 21 25 63 7.4 8 0.2 4 0.065 059 O. R.
10 14 24 66 9.2 10 0.2 4 0.08 060 O. R.
10 22 30 72 9.2 10 0.2 4 0.08 061 O. R.
12 16 26 73 11 12 0.2 4 0.09 062 O. R.
12 26 36 83 11 12 0.2 4 0.09 063 O. R.
14 26 36 83 13 14 0.2 4 0.1 065 O. R.
16 22 32 82 15 16 0.2 4 0.13 066 O. R.
16 36 42 92 15 16 0.2 4 0.13 067 O. R.
20 26 40 92 19 20 0.2 4 0.15 070 O. R.
20 41 52 104 19 20 0.2 4 0.15 071 O. R.
Unit price, €
Prod. group 108
