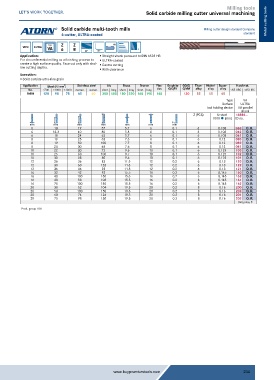

P. 234
Milling tools
Solid carbide milling cutter universal machining
Solid carbide multi-tooth mills Milling cutter design standard Company Metal cutting tools
6-cutter, ULTRA-coated standard
Typ Z Z HB
VHM ULTRA
VA 6 8 45°
Application: Straight shank pursuant to DIN 6535 HB
For circumferential milling as a finishing process to ULTRA-coated
create a high surface quality. Face cut only with shal- Centre cutting
low cutting depths.
With clearance
Execution:
Solid carbide ultra-fine grain
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16886 120 90 75 65 60 350 400 180 220 160 190 140 130 55 45 45
Type VA
Surface ULTRA
Tool holding device HB parallel
shank
Z (PCS) fz steel 16886...
1000 (mm) ID no.
mm mm mm mm mm mm mm
6 13 19 57 5.7 6 0.1 6 0.108 060 O. R.
6 16.3 40 80 5.8 6 0.1 6 0.108 062 O. R.
6 18 24 62 5.7 6 0.1 6 0.108 061 O. R.
8 19 25 63 7.6 8 0.1 6 0.12 080 O. R.
8 19 50 100 7.7 8 0.1 6 0.12 082 O. R.
8 24 30 68 7.6 8 0.1 6 0.12 081 O. R.
10 22 30 72 9.6 10 0.1 6 0.125 100 O. R.
10 25 60 100 9.7 10 0.1 6 0.125 102 O. R.
10 30 38 80 9.6 10 0.1 6 0.125 101 O. R.
12 26 36 83 11.5 12 0.2 6 0.13 120 O. R.
12 30 60 120 11.6 12 0.2 6 0.13 122 O. R.
12 36 46 93 11.5 12 0.2 6 0.13 121 O. R.
16 32 42 92 15.5 16 0.2 6 0.145 160 O. R.
16 40 100 150 15.6 16 0.2 6 0.145 163 O. R.
16 48 58 108 15.5 16 0.2 6 0.145 161 O. R.
16 75 100 150 15.5 16 0.2 6 0.145 162 O. R.
20 38 52 104 19.5 20 0.2 8 0.16 200 O. R.
20 50 100 150 19.6 20 0.2 8 0.16 203 O. R.
20 60 74 126 19.5 20 0.2 8 0.16 201 O. R.
20 75 98 150 19.5 20 0.2 8 0.16 202 O. R.
Unit price, €
Prod. group 108
