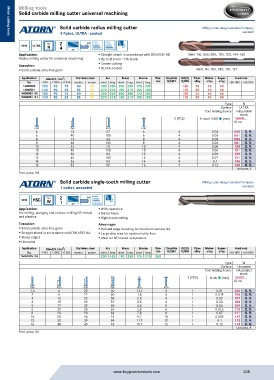

Page 238 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter universal machining

Solid carbide radius milling cutter Milling cutter design standard Company
4 flutes, ULTRA - coated standard
Metal cutting tools
Metal cutting tools
Typ Z HB
VHM ULTRA N 4
Application: ƒ Straight shank in accordance with DIN 6535 HB Ident. No. 060, 080, 100, 120, 140–160
Radius milling cutter for universal machining. ƒ Up to Ø 6 mm = HA shank
Execution: ƒ Centre cutting
ƒ Solid carbide ultra-fine grain ƒ ULTRA-coated Ident. No. 061, 081, 101, 121
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16868060 120 90 75 60 60 300 350 200 240 170 200 130 55 45 45
16868061 110 80 65 55 55 270 315 180 215 155 180 115 50 40 40
16868080-160 120 90 75 60 60 300 350 200 240 170 200 130 55 45 45
16868081-121 110 80 65 55 55 270 315 180 215 155 180 115 50 40 40
Type N
Surface ULTRA
Tool holding device HB parallel
shank
Z (PCS) fz steel 1000 ˜ (mm) 16868...
ID no.
mm mm mm mm
6 13 57 6 4 0.04 060 O. R.
6 40 100 6 4 0.03 061 O. R.
8 19 63 8 4 0.05 080 O. R.
8 40 100 8 4 0.04 081 O. R.
10 22 72 10 4 0.08 100 O. R.
10 40 100 10 4 0.06 101 O. R.
12 26 83 12 4 0.09 120 O. R.
12 45 100 12 4 0.07 121 O. R.
14 26 83 14 4 0.1 140 O. R.
16 32 92 16 4 0.12 160 O. R.
Unit price, €
Prod. group 108
Solid carbide single-tooth milling cutter Milling cutter design standard Company
1 cutter, uncoated standard

Typ
VHM HSC W Z HA
1
Application: ƒ With clearance
For milling, plunging and contour milling NF metals ƒ Mirror finish
and plastics. ƒ Right-hand cutting
Execution: Advantage:
ƒ Solid carbide ultra-fine grain ƒ Defined edge rounding for maximum service life
ƒ Straight shank in accordance with DIN 6535 HA ƒ Large chip area for optimum chip flow
ƒ Sharp-edged ƒ Ideal for NF metals and plastics
ƒ Uncoated
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652105-114 200 425 190 250 175 210 350
Type W
Surface Uncoated
Tool holding device HA parallel
shank
Z (PCS) fz alu ˜ (mm) 16652...
ID no.
mm mm mm mm mm mm
1.5 6 22 50 1.45 3 1 0.01 105 O. R.
2 8 22 50 1.8 3 1 0.014 106 O. R.
3 12 22 50 2.8 3 1 0.02 107 O. R.
4 15 29 57 3.8 4 1 0.03 108 O. R.
5 17 32 60 4.8 5 1 0.04 109 O. R.
6 20 28 64 5.8 6 1 0.055 110 O. R.
8 24 28 64 7.8 8 1 0.07 111 O. R.
10 25 33 73 9.7 10 1 0.085 112 O. R.
12 32 39 84 11.7 12 1 0.1 113 O. R.
16 38 45 93 15.7 16 1 0.12 114 O. R.
Unit price, €
Prod. group 152
