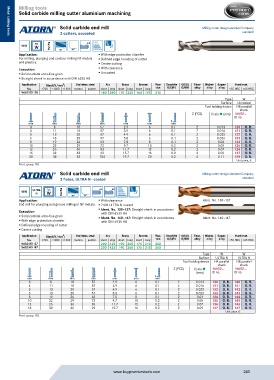

Page 240 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter aluminium machining

Solid carbide end mill Milling cutter design standard Company
2 cutters, uncoated standard
Metal cutting tools
Metal cutting tools
Typ Z HB
VHM W 2 45°
Application: ƒ With edge protection chamfer
For milling, plunging and contour milling NF metals ƒ Defined edge rounding of cutter
and plastics. ƒ Centre cutting
Execution: ƒ With clearance
ƒ Solid carbide ultra-fine grain ƒ Uncoated
ƒ Straight shank in accordance with DIN 6535 HB
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652120-128 180 380 170 225 160 190 315
Type W
Surface Uncoated
Tool holding device HB parallel
shank
Z (PCS) fz alu ˜ (mm) 16652...
ID no.
mm mm mm mm mm mm mm
3 8 18 57 2.9 6 0.1 2 0.013 120 O. R.
4 11 18 57 3.9 6 0.1 2 0.016 121 O. R.
5 13 20 57 4.9 6 0.1 2 0.022 122 O. R.
6 13 20 57 5.8 6 0.1 2 0.026 123 O. R.
8 19 26 63 7.8 8 0.1 2 0.04 124 O. R.
10 22 29 72 9.7 10 0.2 2 0.05 125 O. R.
12 26 36 83 11.7 12 0.2 2 0.07 126 O. R.
16 32 42 92 15.7 16 0.2 2 0.09 127 O. R.
20 38 52 104 19.7 20 0.2 2 0.11 128 O. R.
Unit price, €
Prod. group 152
Solid carbide end mill Milling cutter design standard Company
2 flutes, ULTRA N - coated standard

VHM ULTRA Typ Z HA HB
N W 2 45°
Application: ƒ With clearance Ident. No. 130–137
End mill for plunging and groove milling in NF metals. ƒ ZrCN ULTRA N-coated
Execution: ƒ Ident. No. 130–137: Straight shank in accordance
with DIN 6535 HA
ƒ Solid carbide ultra-fine grain ƒ Ident. No. 140–147: Straight shank in accordance Ident. No. 140–147
ƒ With edge protection chamfer with DIN 6535 HB
ƒ Defined edge rounding of cutter
ƒ Centre cutting
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652130-137 200 425 190 250 175 210 350
16652140-147 200 425 190 250 175 210 350
Type W W
Surface ULTRA N ULTRA N
Tool holding device HA parallel HB parallel
shank shank
Z (PCS) fz alu ˜ 16652... 16652...
(mm) ID no. ID no.
mm mm mm mm mm mm mm
3 8 18 57 2.9 6 0.1 2 0.013 130 O. R. 140 O. R.
4 11 18 57 3.9 6 0.1 2 0.016 131 O. R. 141 O. R.
5 13 20 57 4.9 6 0.1 2 0.022 132 O. R. 142 O. R.
6 13 20 57 5.8 6 0.1 2 0.026 133 O. R. 143 O. R.
8 19 26 63 7.8 8 0.1 2 0.04 134 O. R. 144 O. R.
10 22 29 72 9.7 10 0.2 2 0.05 135 O. R. 145 O. R.
12 26 36 83 11.7 12 0.2 2 0.07 136 O. R. 146 O. R.
16 32 42 92 15.7 16 0.2 2 0.09 137 O. R. 147 O. R.
Unit price, €
Prod. group 152

www.buypremiumtools.com 240
