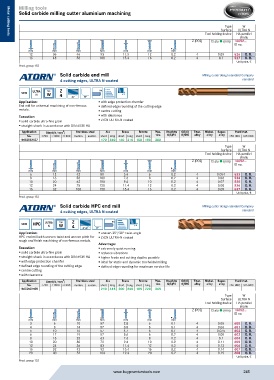

Page 245 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter aluminium machining

Type W
Surface ULTRA N
Tool holding device HA parallel
shank
Metal cutting tools
Metal cutting tools
Z (PCS) fz alu ˜ (mm) 16652...
ID no.
mm mm mm mm mm mm mm
12 36 46 93 11.5 12 0.2 4 0.09 526 O. R.
16 48 58 108 15.4 16 0.2 4 0.1 527 O. R.
Unit price, €
Prod. group 152
Solid carbide end mill Milling cutter design standard Company
4 cutting edges, ULTRA N-coated standard

VHM ULTRA Typ Z HA
N W 4 45°
Application: ƒ with edge protection chamfer
End mill for universal machining of non-ferrous ƒ defined edge rounding of the cutting edge
metals. ƒ centre cutting
Execution: ƒ with clearance
ƒ solid carbide ultra-fine grain ƒ ZrCN ULTRA-N coated
ƒ straight shank in accordance with DIN 6535 HA
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652533-537 170 360 160 210 150 180 300
Type W
Surface ULTRA N
Tool holding device HA parallel
shank
Z (PCS) fz alu ˜ (mm) 16652...
ID no.
mm mm mm mm mm mm mm
6 12 42 80 5.6 6 0.2 4 0.054 533 O. R.
8 16 58 100 7.6 8 0.2 4 0.06 534 O. R.
10 20 62 100 9.6 10 0.2 4 0.07 535 O. R.
12 24 75 120 11.4 12 0.2 4 0.08 536 O. R.
16 32 100 150 15.4 16 0.2 4 0.09 537 O. R.
Unit price, €
Prod. group 152
Solid carbide HPC end mill Milling cutter design standard Company
4 cutting edges, ULTRA N-coated standard

Z
Typ
VHM HPC ULTRA W 4 45° HA
N
Application: 35°/38° ƒ uneven 35°/38° twist angle
HPC end mill with uneven twist and uneven pitch for ƒ ZrCN ULTRA-N coated
rough and finish machining of non-ferrous metals.
Advantage:
Execution: ƒ extremely quiet running
ƒ solid carbide ultra-fine grain ƒ reduces vibrations
ƒ straight shank in accordance with DIN 6535 HA ƒ higher feeds and cutting depths possible
ƒ with edge protection chamfer ƒ ideal for static and dynamic trochoidal milling
ƒ defined edge rounding of the cutting edge ƒ defined edge rounding for maximum service life
ƒ centre cutting
ƒ with clearance
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652600-608 210 445 200 260 185 220 365
Type W
Surface ULTRA N
Tool holding device HA parallel
shank
Z (PCS) fz alu ˜ (mm) 16652...
ID no.
mm mm mm mm mm mm mm
3 6 10 57 2.8 6 0.1 4 0.05 600 O. R.
4 8 14 57 3.8 6 0.1 4 0.06 601 O. R.
5 10 16 57 4.7 6 0.1 4 0.075 602 O. R.
6 12 19 57 5.6 6 0.2 4 0.08 603 O. R.
8 16 25 63 7.6 8 0.2 4 0.1 604 O. R.
10 20 30 72 9.6 10 0.2 4 0.11 605 O. R.
12 24 36 83 11.4 12 0.2 4 0.12 606 O. R.
16 32 42 92 15.4 16 0.2 4 0.14 607 O. R.
20 40 52 104 19.4 20 0.2 4 0.19 608 O. R.
Unit price, €
Prod. group 152
www.buypremiumtools.com 245
