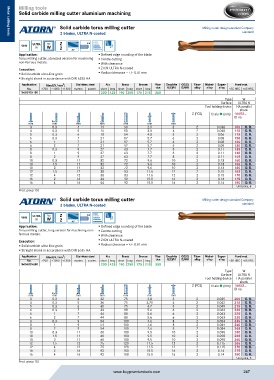

P. 247
Milling tools
Solid carbide milling cutter aluminium machining
Solid carbide torus milling cutter Milling cutter design standard Company
2 blades, ULTRA N-coated standard
Metal cutting tools
Metal cutting tools
ULTRA Typ Z HA
VHM W
N 2
Application: Defined edge rounding of the blade
Torus milling cutter, standard version for machining Centre cutting
non-ferrous metals. With clearance
Execution: ZrCN ULTRA N-coated
Solid carbide ultra-fine grain Radius tolerance = +/- 0.01 mm
Straight shank in accordance with DIN 6535 HA
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16653105-180 200 425 190 250 175 210 350
Type W
Surface ULTRA N
Tool holding device HA parallel
shank
Z (PCS) fz alu (mm) 16653...
ID no.
mm mm mm mm mm mm mm
3 0.3 4 14 50 2.9 3 2 0.036 105 O. R.
4 0.3 5 16 50 3.8 4 2 0.048 110 O. R.
5 0.3 6 18 54 4.8 5 2 0.06 115 O. R.
6 0.3 7 21 57 5.7 6 2 0.08 120 O. R.
6 1 7 21 57 5.7 6 2 0.08 125 O. R.
6 2 7 21 57 5.7 6 2 0.08 130 O. R.
8 0.3 9 27 63 7.7 8 2 0.11 135 O. R.
8 1 9 27 63 7.7 8 2 0.11 140 O. R.
8 2 9 27 63 7.7 8 2 0.11 145 O. R.
10 0.3 11 32 72 9.6 10 2 0.13 150 O. R.
10 1.5 11 32 72 9.6 10 2 0.13 155 O. R.
10 3 11 32 72 9.6 10 2 0.13 160 O. R.
12 1.5 12 38 83 11.6 12 2 0.15 165 O. R.
12 4 12 38 83 11.6 12 2 0.15 170 O. R.
16 2 16 44 92 15.5 16 2 0.16 175 O. R.
16 4 16 44 92 15.5 16 2 0.16 180 O. R.
Unit price, €
Prod. group 152
Solid carbide torus milling cutter Milling cutter design standard Company
2 blades, ULTRA N-coated standard
ULTRA Typ Z HA
VHM N W 2
Application: Defined edge rounding of the blade
Torus milling cutter, long version for machining non- Centre cutting
ferrous metals. With clearance
Execution: ZrCN ULTRA N-coated
Solid carbide ultra-fine grain Radius tolerance = +/- 0.01 mm
Straight shank in accordance with DIN 6535 HA
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16653205-280 200 425 190 250 175 210 350
Type W
Surface ULTRA N
Tool holding device HA parallel
shank
Z (PCS) fz alu (mm) 16653...
ID no.
mm mm mm mm mm mm mm
3 0.3 4 32 75 2.8 3 2 0.035 205 O. R.
4 0.3 5 36 75 3.75 4 2 0.042 210 O. R.
5 0.3 6 40 75 4.7 5 2 0.049 215 O. R.
6 0.3 7 44 80 5.6 6 2 0.063 220 O. R.
6 1 7 44 80 5.6 6 2 0.063 225 O. R.
6 2 7 44 80 5.6 6 2 0.063 230 O. R.
8 0.3 9 54 100 7.6 8 2 0.084 235 O. R.
8 1 9 54 100 7.6 8 2 0.084 240 O. R.
8 2 9 54 100 7.6 8 2 0.084 245 O. R.
10 0.3 11 60 100 9.5 10 2 0.098 250 O. R.
10 1.5 11 60 100 9.5 10 2 0.098 255 O. R.
10 3 11 60 100 9.5 10 2 0.098 260 O. R.
12 1.5 12 75 120 11.5 12 2 0.115 265 O. R.
12 4 12 75 120 11.5 12 2 0.115 270 O. R.
16 2 16 92 150 15.5 16 2 0.14 275 O. R.
16 4 16 92 150 15.5 16 2 0.14 280 O. R.
Unit price, €
Prod. group 152
