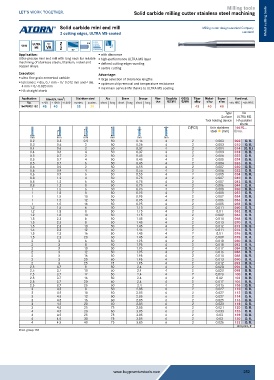

Page 252 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter stainless steel machining

Solid carbide mini end mill Milling cutter design standard Company Metal cutting tools
2 cutting edges, ULTRA MS-coated standard

ULTRA Typ Z HA
VHM VA
MS 2
Application: ƒ with clearance
Ultra-precise mini end mill with long neck for reliable ƒ high-performance ULTRA MS layer
machining of stainless steels, titanium, nickel and ƒ defined cutting edge rounding
copper alloys.
ƒ centre cutting
Execution: Advantage:
ƒ ultra-fine grain cemented carbide ƒ large selection of clearance lengths
ƒ tolerance: < dia. 0.7 mm = 0/-0.012 mm and < dia. ƒ optimum chip removal and temperature resistance
4 mm = 0/-0.020 mm
ƒ HA straight shank ƒ maximum service life thanks to ULTRA MS coating
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16670002-132 45 40 35 30 45 40 45
Type VA
Surface ULTRA MS
Tool holding device HA parallel
shank
Z (PCS) fz in stainless 16670...
steel ˜ (mm) ID no.
mm mm mm mm mm mm
0.2 0.3 0.5 50 0.16 4 2 0.003 002 O. R.
0.3 0.4 2 50 0.26 4 2 0.003 010 O. R.
0.4 0.6 2 50 0.37 4 2 0.004 014 (O. R.)
0.4 0.6 4 50 0.37 4 2 0.003 018 O. R.
0.5 0.7 2 50 0.45 4 2 0.006 022 O. R.
0.5 0.7 4 50 0.45 4 2 0.005 024 O. R.
0.5 0.7 6 50 0.45 4 2 0.004 026 O. R.
0.6 0.9 2 50 0.55 4 2 0.007 030 O. R.
0.6 0.9 4 50 0.55 4 2 0.006 032 O. R.
0.6 0.9 6 50 0.55 4 2 0.005 034 O. R.
0.8 1.2 4 50 0.75 4 2 0.007 040 O. R.
0.8 1.2 6 50 0.75 4 2 0.007 042 O. R.
0.8 1.2 8 50 0.75 4 2 0.006 044 O. R.
1 1.5 6 50 0.95 4 2 0.008 050 O. R.
1 1.5 8 50 0.95 4 2 0.008 052 O. R.
1 1.5 10 50 0.95 4 2 0.007 054 O. R.
1 1.5 12 50 0.95 4 2 0.006 056 O. R.
1 1.5 16 50 0.95 4 2 0.005 058 O. R.
1.2 1.8 6 50 1.15 4 2 0.011 060 O. R.
1.2 1.8 8 50 1.15 4 2 0.01 062 O. R.
1.2 1.8 10 50 1.15 4 2 0.009 064 O. R.
1.5 2.3 6 50 1.45 4 2 0.014 068 O. R.
1.5 2.3 8 50 1.45 4 2 0.013 070 O. R.
1.5 2.3 10 50 1.45 4 2 0.012 072 O. R.
1.5 2.3 12 50 1.45 4 2 0.011 074 O. R.
1.5 2.3 16 50 1.45 4 2 0.01 076 O. R.
1.5 2.3 20 60 1.45 4 2 0.009 078 O. R.
2 3 6 50 1.95 4 2 0.018 080 O. R.
2 3 8 50 1.95 4 2 0.018 082 O. R.
2 3 10 50 1.95 4 2 0.017 084 O. R.
2 3 12 50 1.95 4 2 0.016 086 O. R.
2 3 16 50 1.95 4 2 0.014 088 O. R.
2 3 20 60 1.95 4 2 0.013 090 O. R.
2 3 25 75 1.95 4 2 0.012 092 O. R.
2.5 3.7 8 50 2.4 4 2 0.023 096 O. R.
2.5 3.7 10 50 2.4 4 2 0.023 098 O. R.
2.5 3.7 12 50 2.4 4 2 0.023 100 O. R.
2.5 3.7 16 50 2.4 4 2 0.02 102 O. R.
2.5 3.7 20 60 2.4 4 2 0.017 104 O. R.
2.5 3.7 25 60 2.4 4 2 0.015 106 O. R.
3 4.5 8 50 2.85 6 2 0.027 110 O. R.
3 4.5 10 50 2.85 6 2 0.027 112 O. R.
3 4.5 12 50 2.85 6 2 0.027 114 O. R.
3 4.5 16 60 2.85 6 2 0.025 116 O. R.
3 4.5 20 60 2.85 6 2 0.023 118 O. R.
3 4.5 25 75 2.85 6 2 0.021 120 O. R.
4 4.5 20 60 3.85 6 2 0.033 126 O. R.
4 4.5 25 75 3.85 6 2 0.03 128 O. R.
4 4.5 30 75 3.85 6 2 0.03 130 O. R.
4 4.5 40 75 3.85 6 2 0.026 132 O. R.
Unit price, €
Prod. group 152
